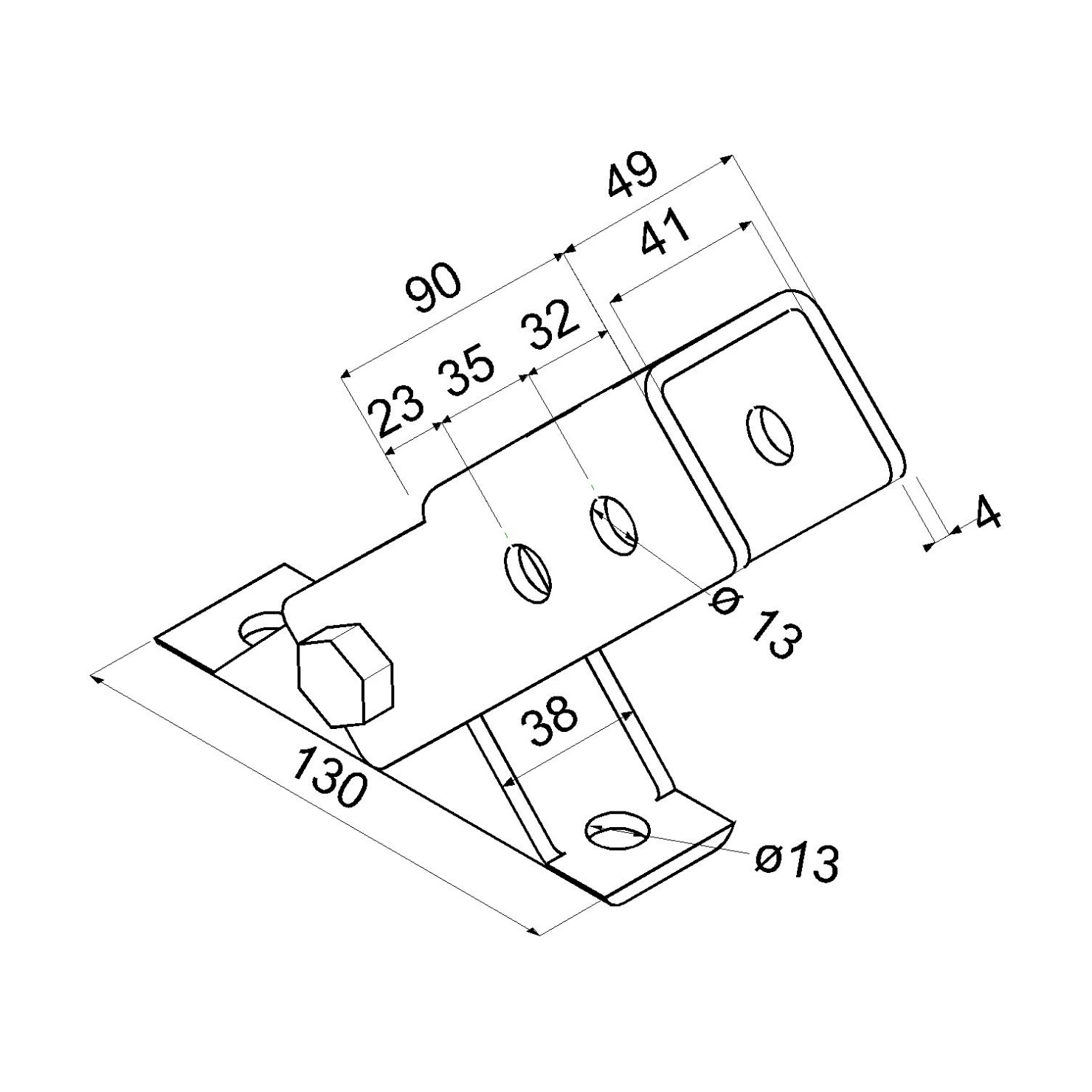

Hinged Baseplate RHB
Adjustable base with pivot flexibility
RHBP hinged baseplate accommodates angular adjustments on uneven surfaces. Perfect for ensuring level installations in variable terrain.
Coating :
| Item no | Description | Channel profile(mm) | Hole(mm) | Sales Unit(Pcs) | Coating |
| 402605 | Hinged Bracket RHB 41 GI | 41 | 10.5 | 10 | Galvanised |
| 402610 | Hinged Bracket RHB 41 HDG | 41 | 10.5 | 10 | Hot Dip Galvanised |
- Used to install with FUS channels at an angle from 0° to 180°.
- Used for bracing of cantilever arms.
- Steel Grade-E250
- Coating- Electrogalvanized, Hot Dip Galvanized
- Versatile Angle Adjustment allows for the fixation of mounting channels at an angle ranging from 0° to 180°, enabling flexible support structures.
- Available in GI and HDG finish for better corrosion resistance.
