Channels & Accessories
Mounting Bracket RMB
Universal brackets for mounting flexibility.
RMB mounting brackets adapts to various support needs. Use it to anchor beams, channel joints, or equipment mounts in compact spaces.
Coating :
| Item no | Description | Tightening Torque(Nm) | Sales Unit(Pcs) | Coating |

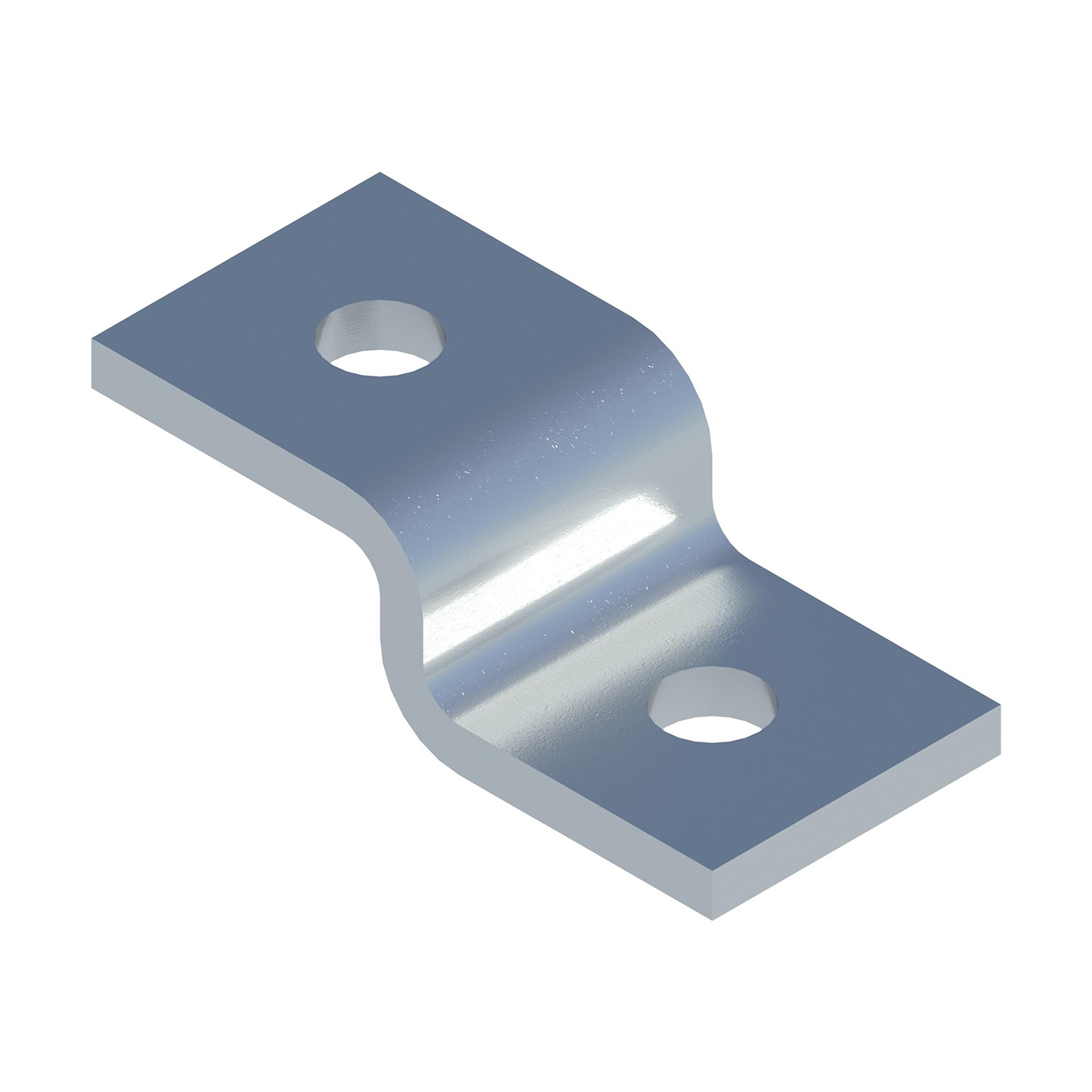

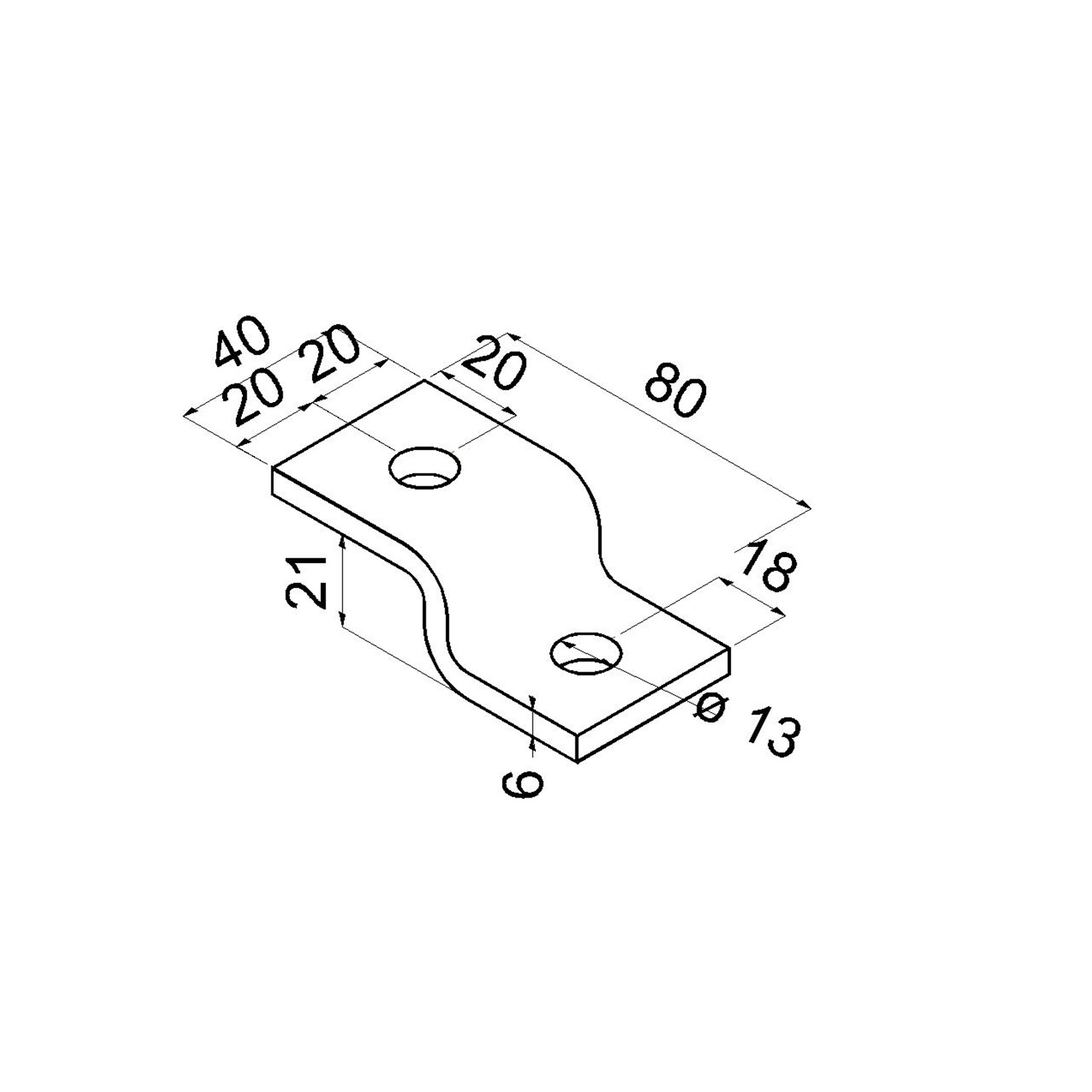

| 403301 | Mounting bracket RMB Z21 GI | 40 | 25 | Galvanised |

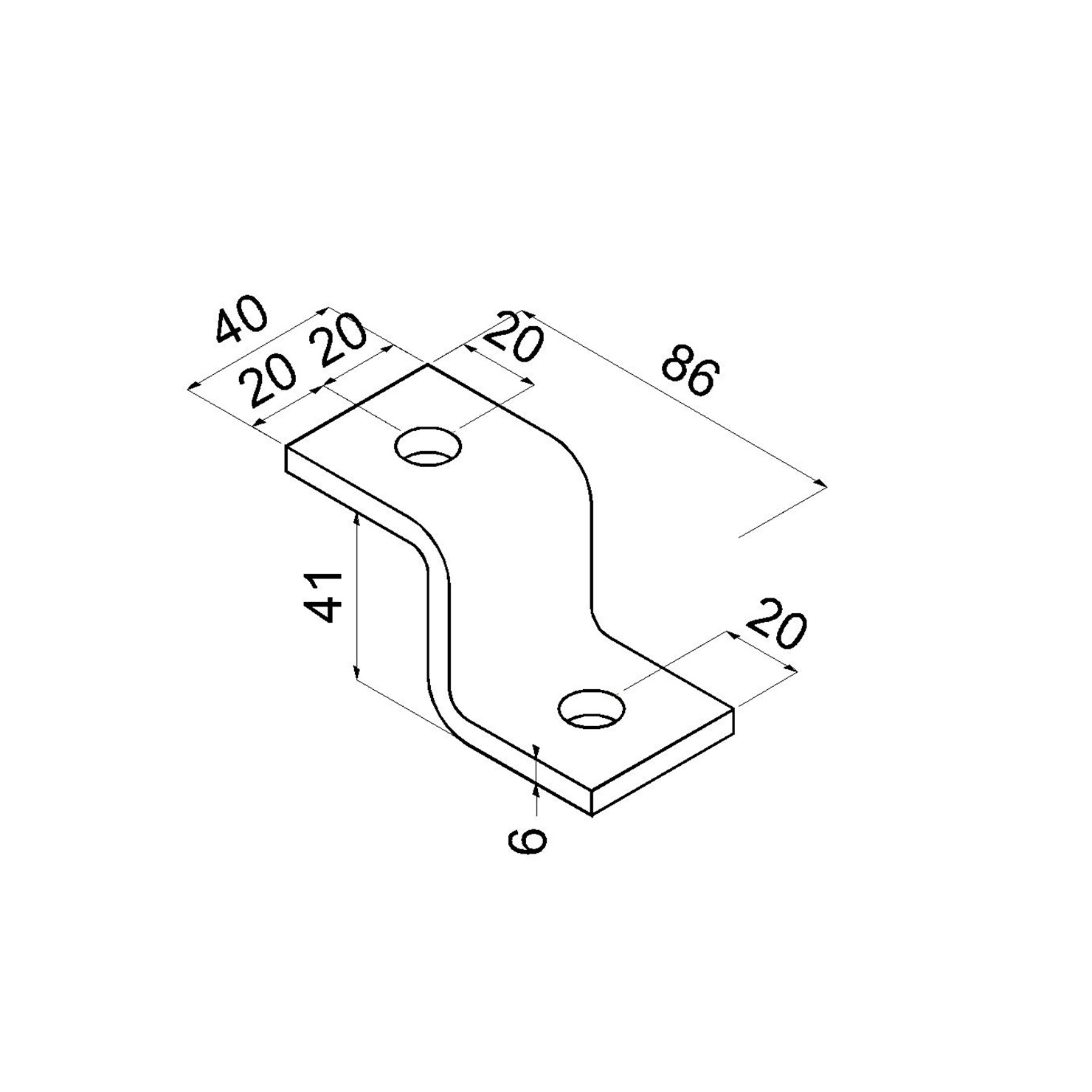

| 403302 | Mounting bracket RMB Z41 GI | 40 | 25 | Galvanised |

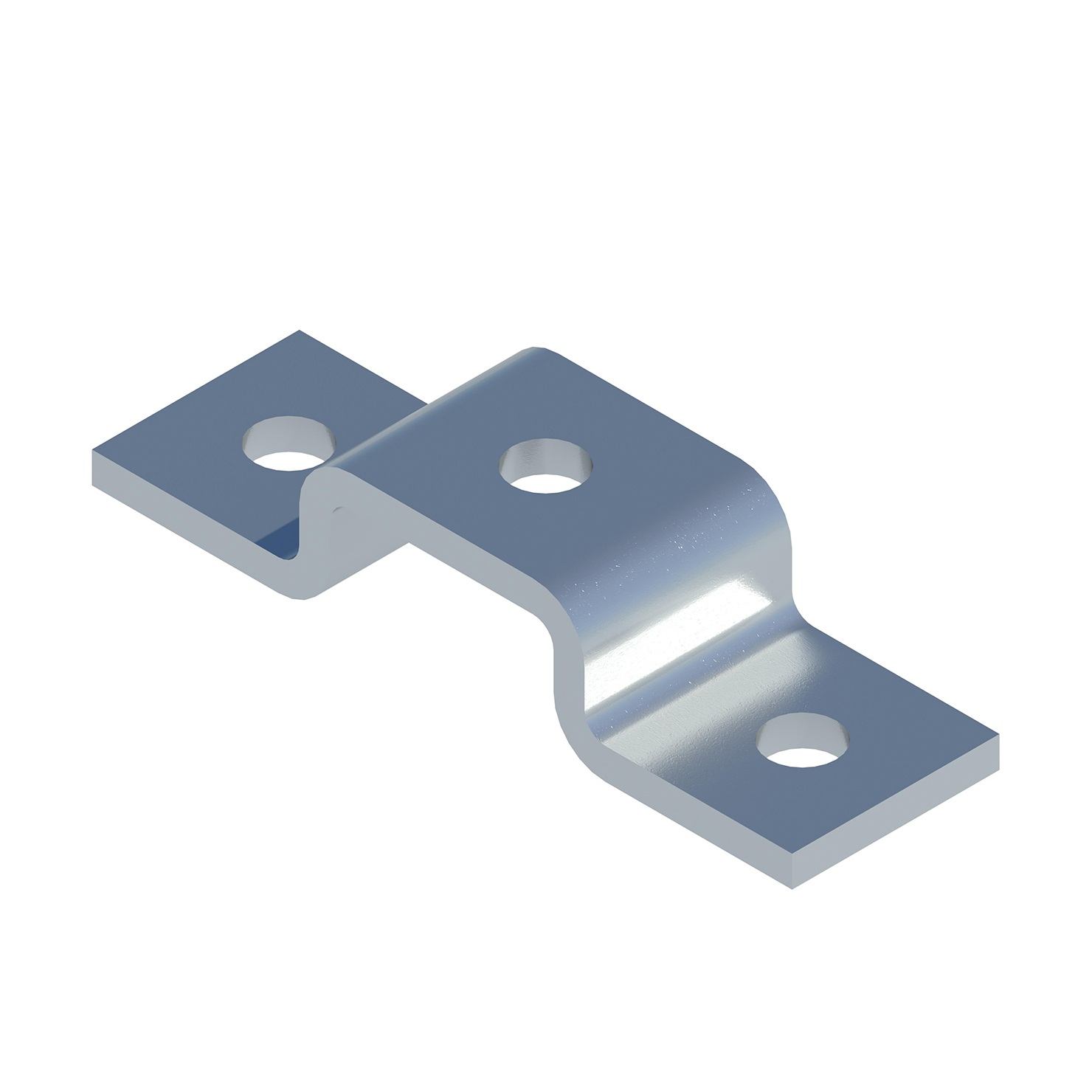

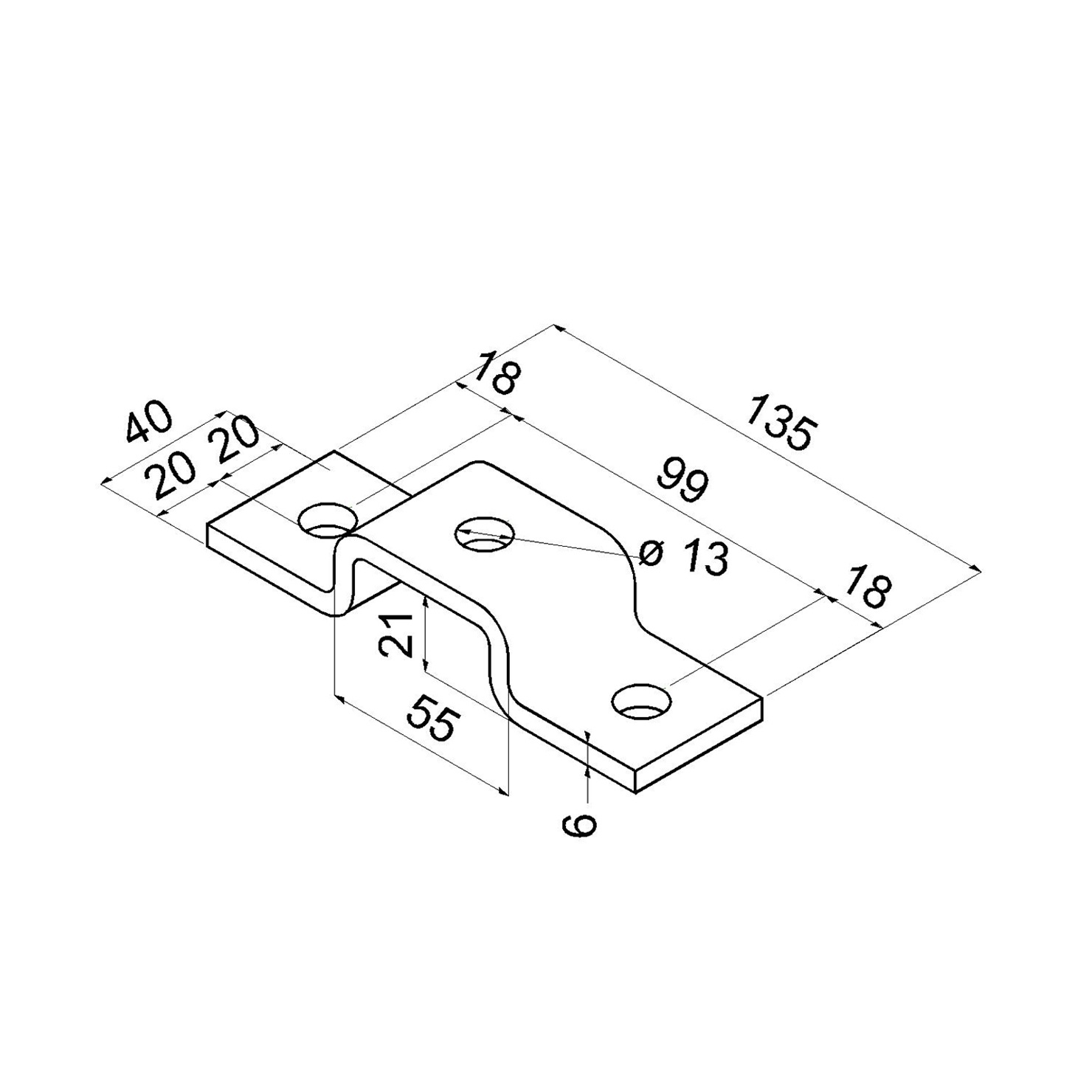

| 403303 | Mounting bracket RMB U21 GI | 40 | 25 | Galvanised |

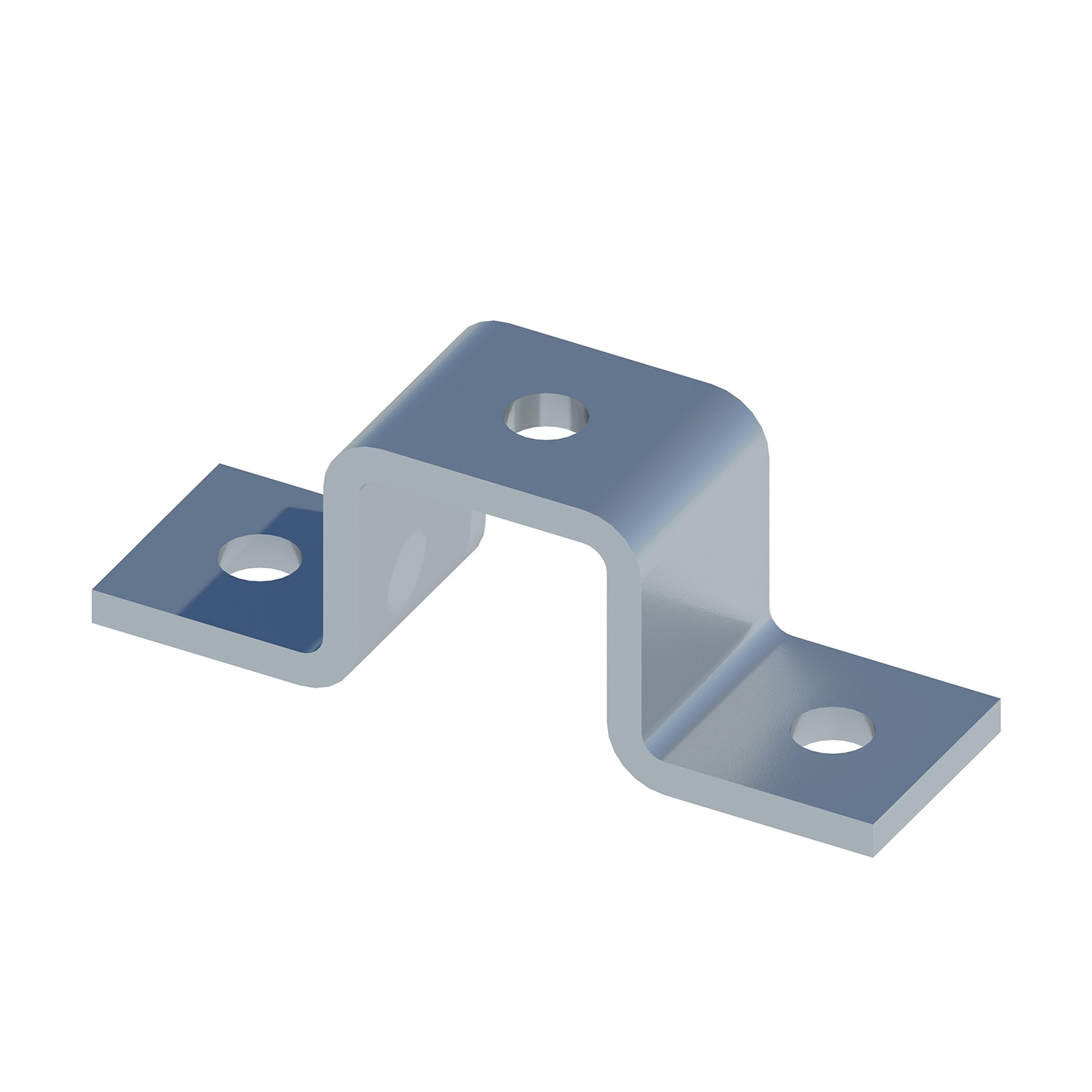

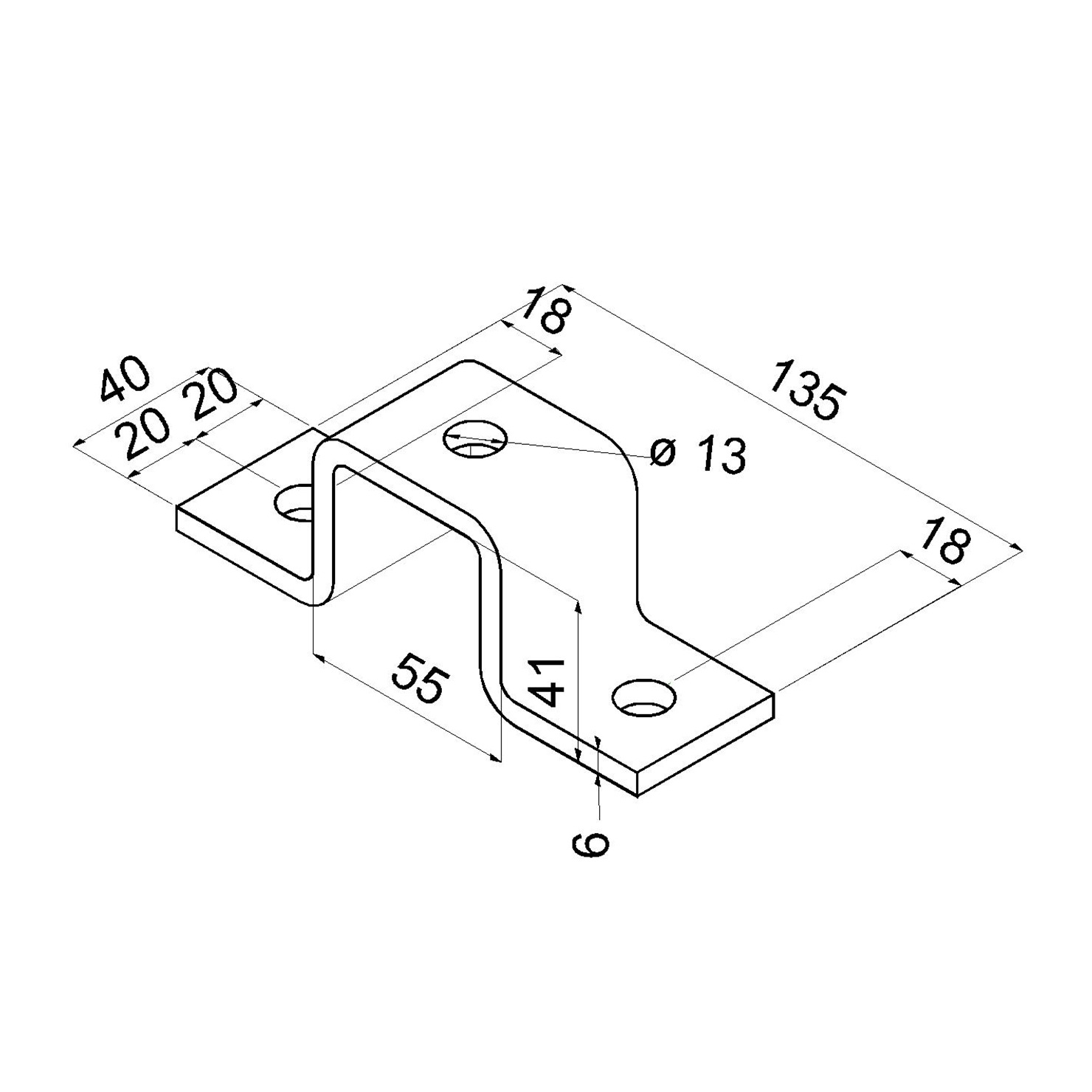

| 403304 | Mounting bracket RMB U41 GI | 40 | 25 | Galvanised |

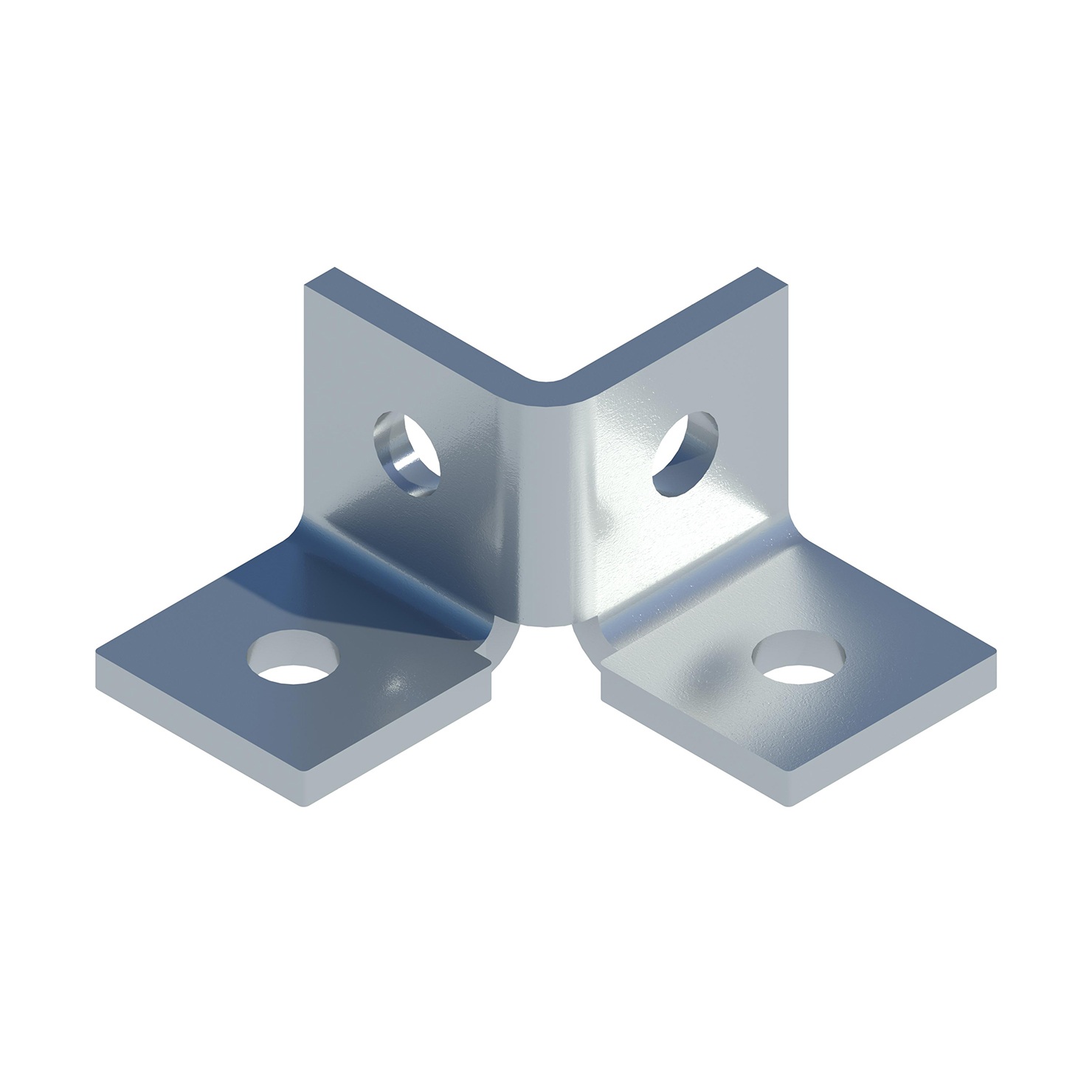

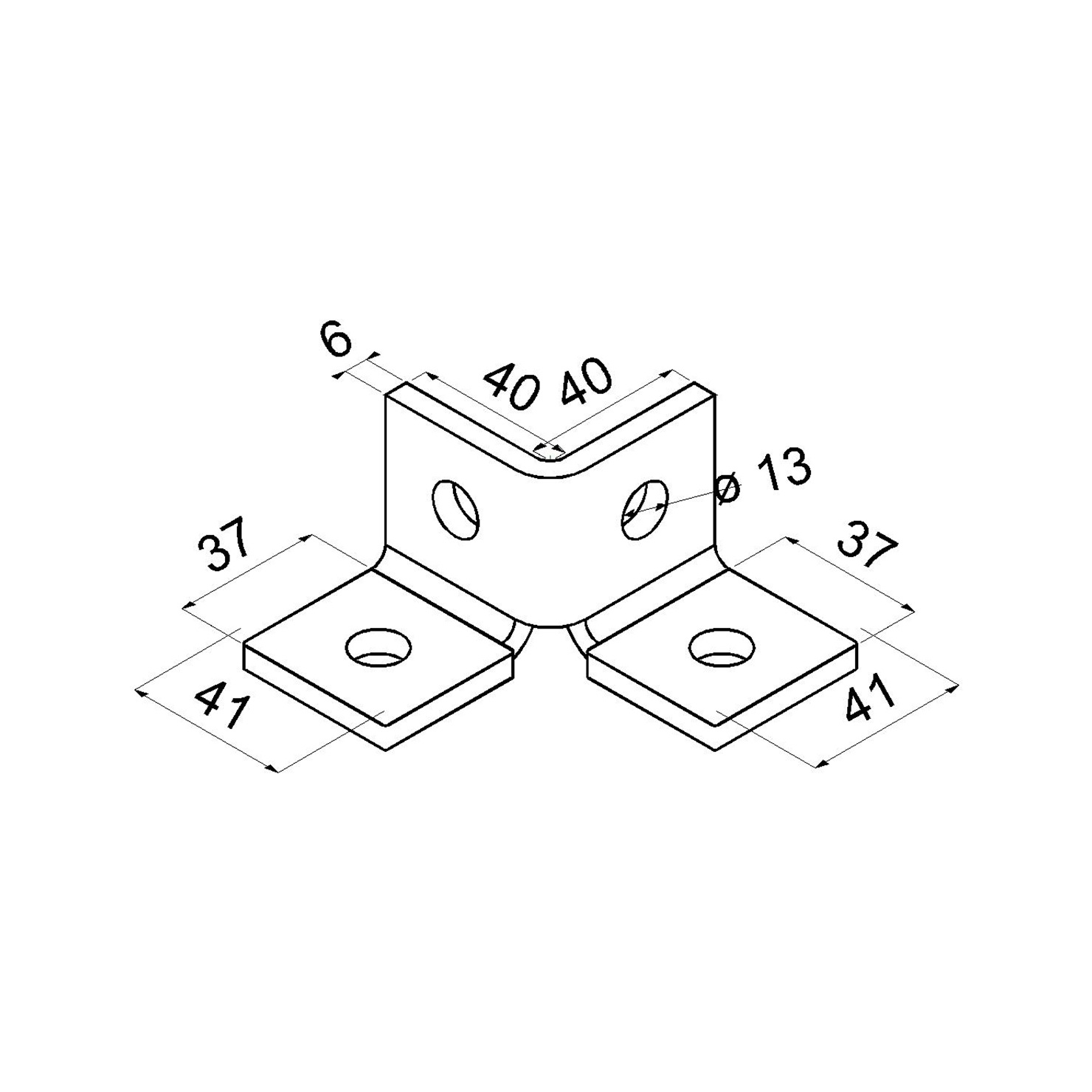

| 403305 | Mounting bracket RMB U4Y GI | 40 | 25 | Galvanised |

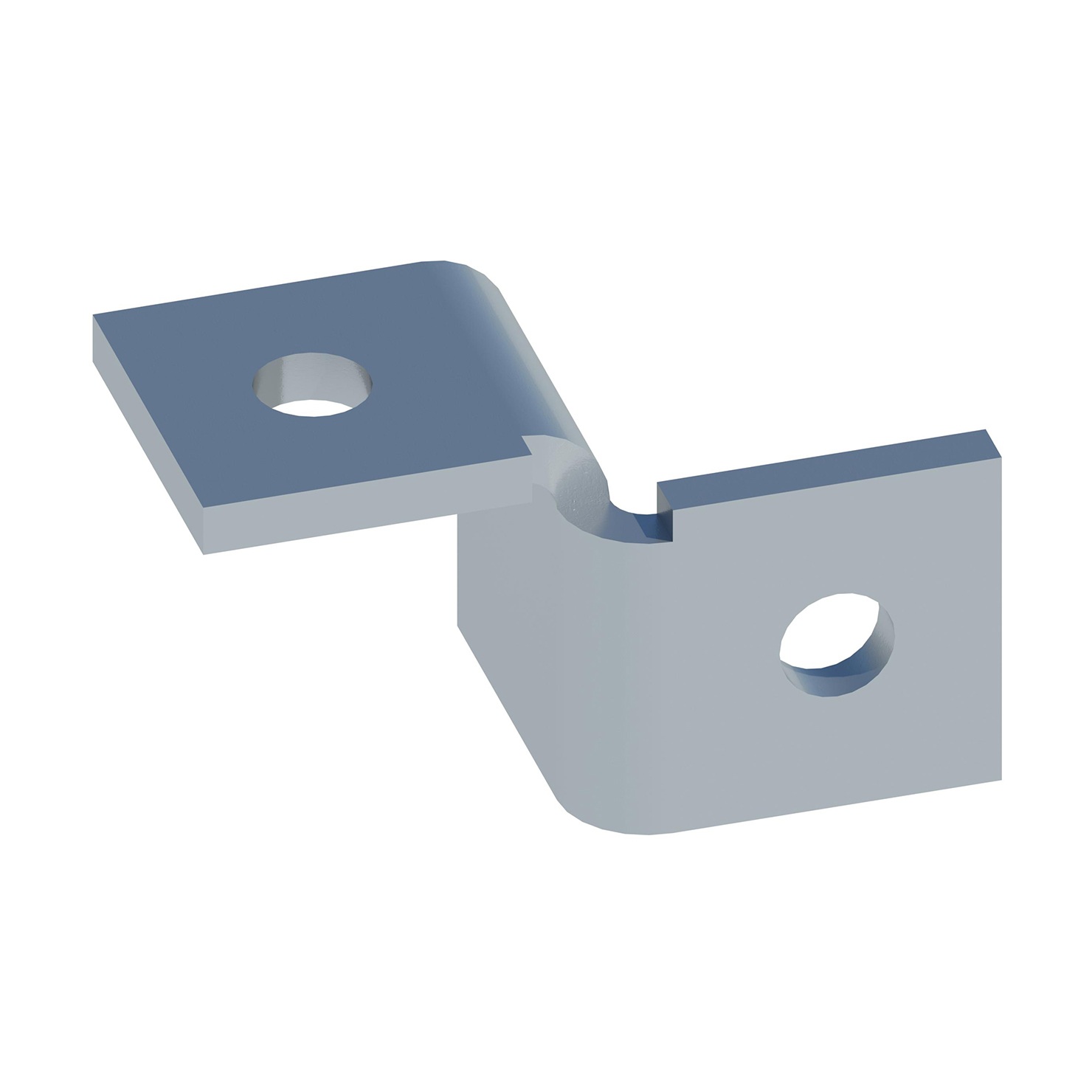

| 403306 | Mounting bracket RMB U180R GI | 40 | 25 | Galvanised |
| 403307 | Mounting bracket RMB U180L GI | 40 | 25 | Galvanised |

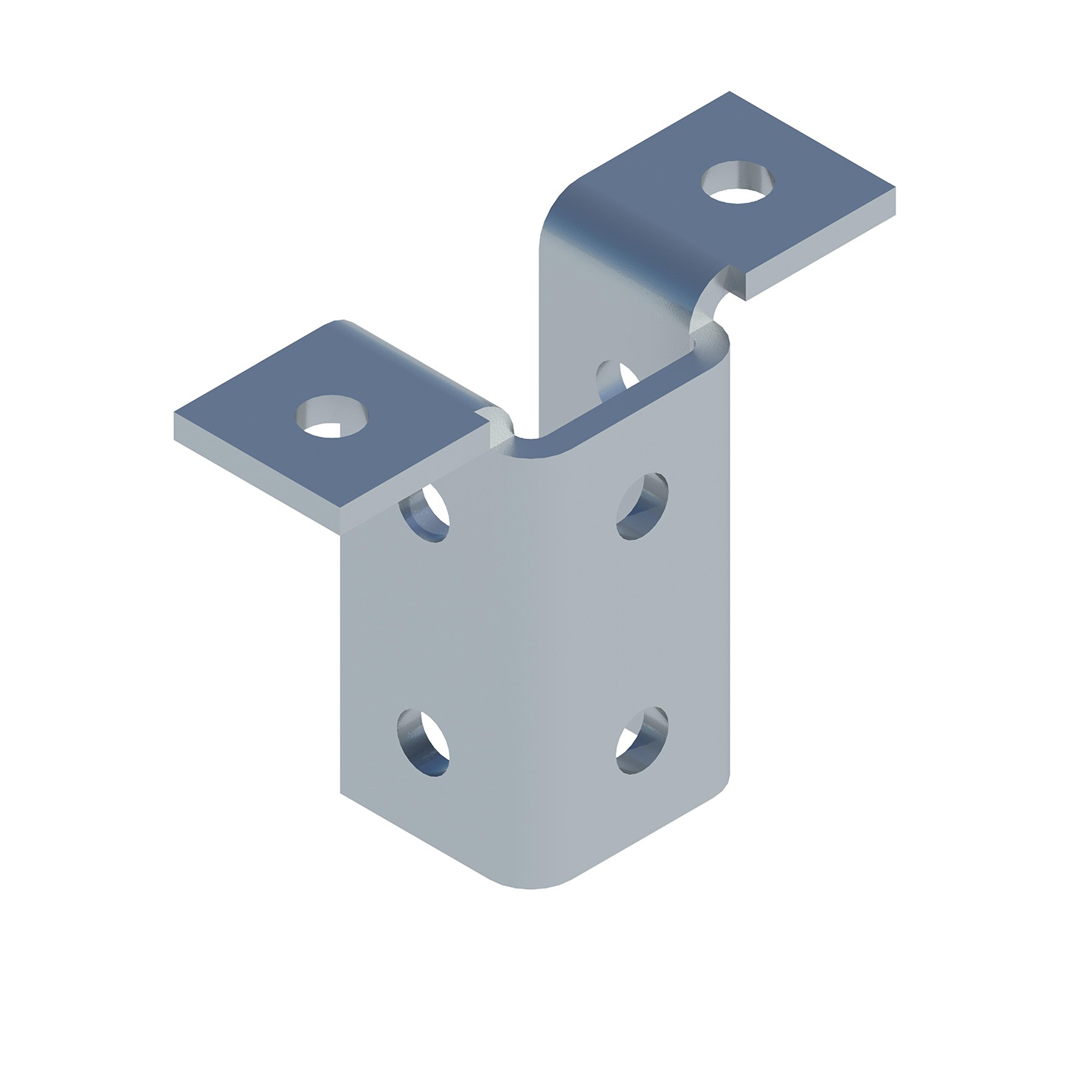

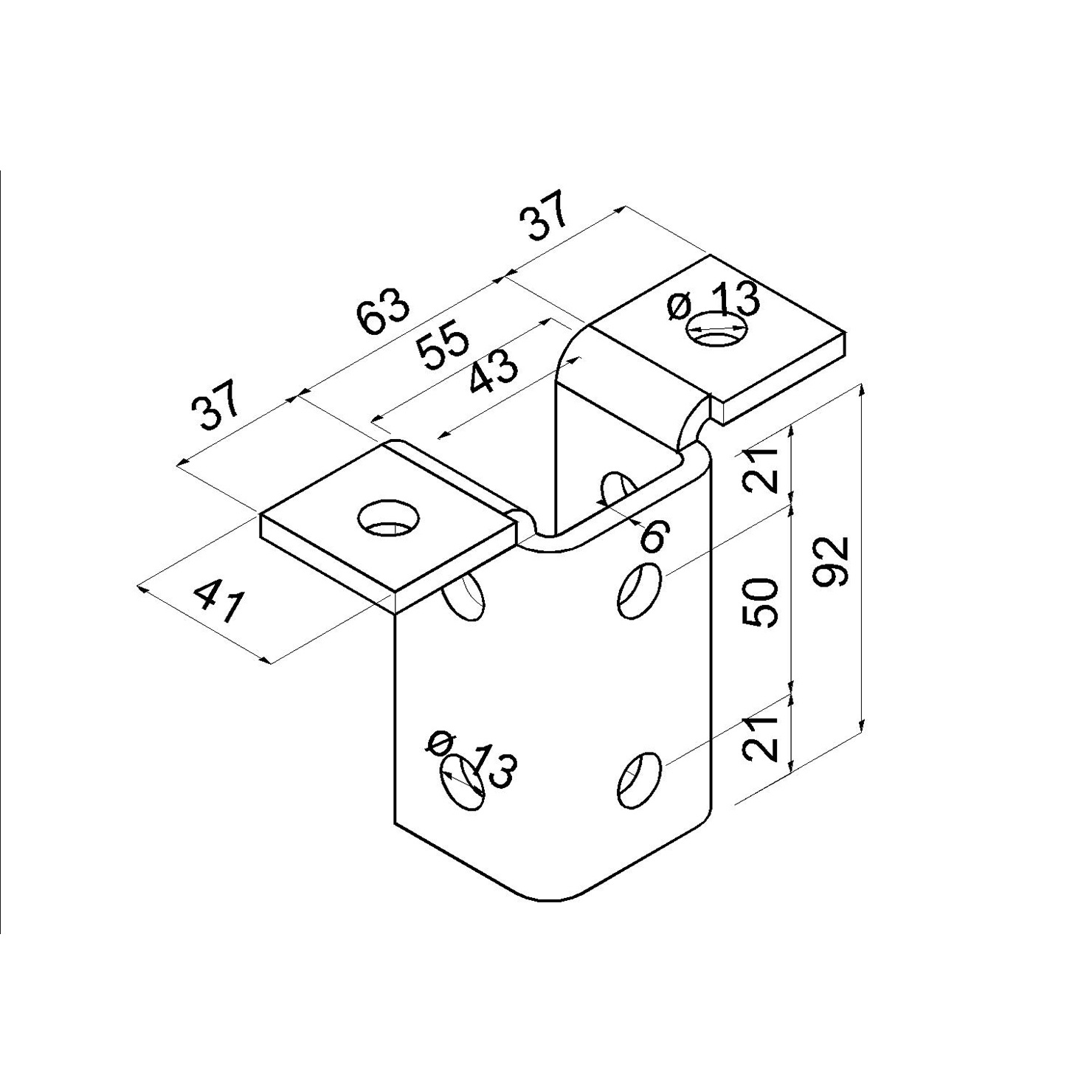

| 403308 | Mounting bracket RMB U8T GI | 40 | 25 | Galvanised |
| 403309 | Mounting bracket RMB Z21 HDG | 40 | 25 | Hot Dip Galvanised |
| 403310 | Mounting bracket RMB Z41 HDG | 40 | 25 | Hot Dip Galvanised |
| 403311 | Mounting bracket RMB U21 HDG | 40 | 25 | Hot Dip Galvanised |
| 403312 | Mounting bracket RMB U41 HDG | 40 | 25 | Hot Dip Galvanised |
| 403313 | Mounting bracket RMB U4Y HDG | 40 | 25 | Hot Dip Galvanised |
| 403314 | Mounting bracket RMB U180R HDG | 40 | 25 | Hot Dip Galvanised |
| 403315 | Mounting bracket RMB U180L HDG | 40 | 25 | Hot Dip Galvanised |
| 403316 | Mounting bracket RMB U8T HDG | 40 | 25 | Hot Dip Galvanised |

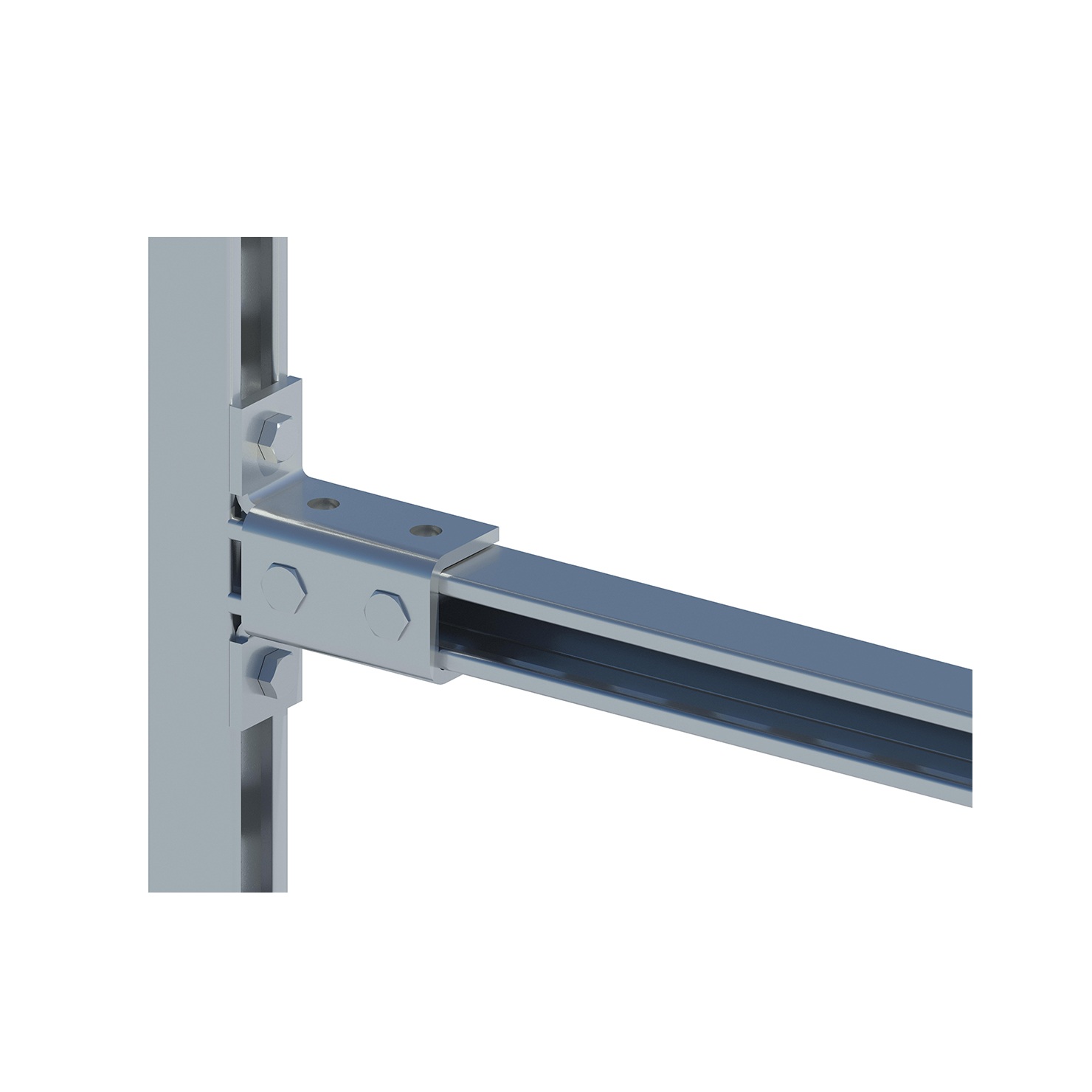

Designed for connecting channels and structural members in modular support systems.
- Steel Grade-E250
- Coating- Electrogalvanized, Hot Dip Galvanized
- Flexible configurations available in multiple designs for varied installations.
- Pre-punched holes allow easy bolting without on-site drilling or welding.
- Compatible with different channel sizes ensures seamless integration with modular support frameworks.
- Corrosion protection by electro galvanizing and HDG
