Channels & Accessories

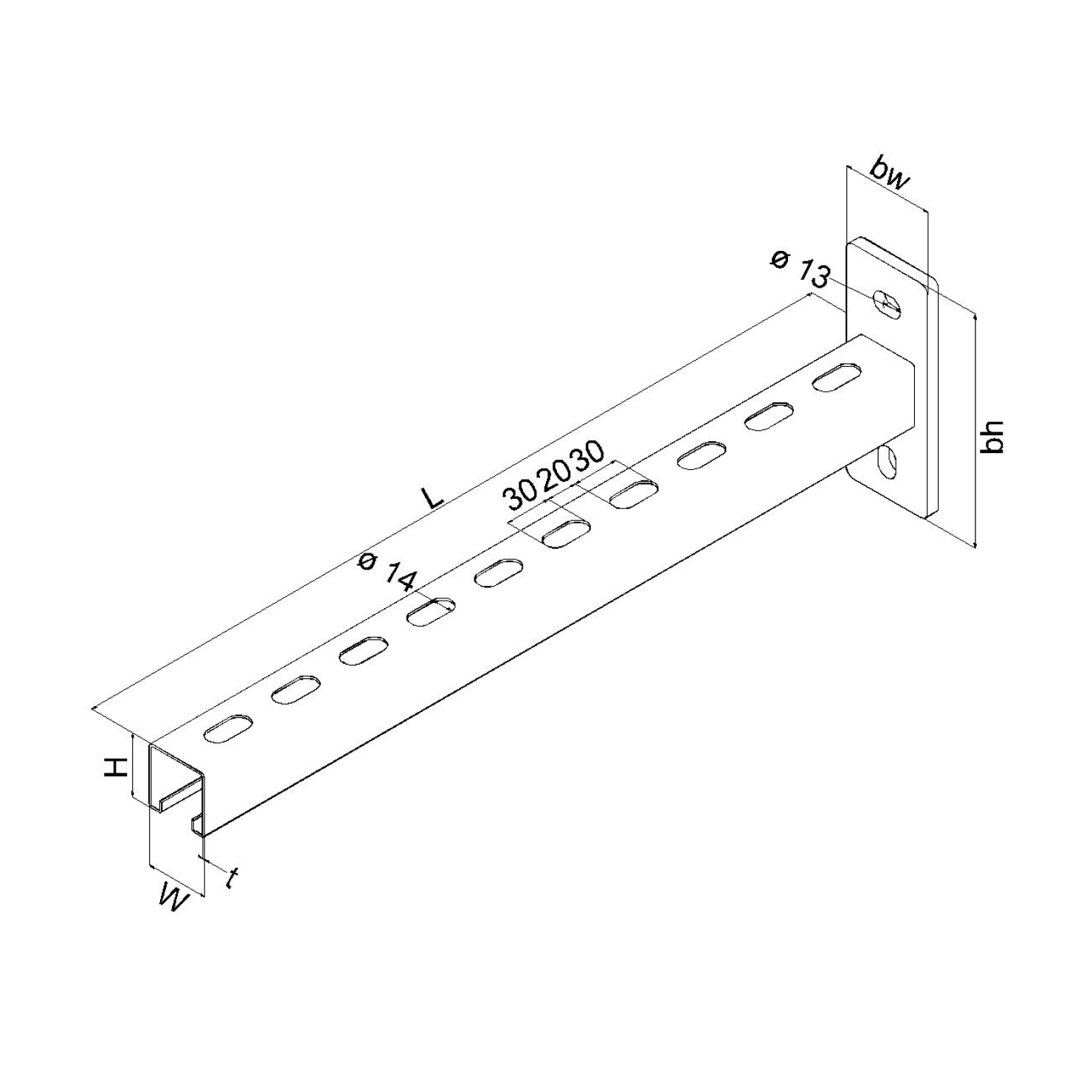

Cantilever Arm RCA
Extendable support arm for overhanging loads
RCA cantilever arm allows you to project supports outward safely from wall.
Coating :
| Item no | Description | Tickness (mm) | Length(mm) | Profile size(mm) | Sales Unit(Pcs) |
| 402901 | Cantilever Arm RCA 41-300/2.0 GI | 2 | 300 | 41 | 1 |
| 402902 | Cantilever Arm RCA 41-450/2.0 GI | 2 | 450 | 41 | 1 |
| 402903 | Cantilever Arm RCA 41-600/2.0 GI | 2 | 600 | 41 | 1 |
| 402904 | Cantilever Arm RCA 41-750/2.0 GI | 2 | 750 | 41 | 1 |
| 402905 | Cantilever Arm RCA 41-300/2.5 GI | 2.5 | 300 | 41 | 1 |
| 402906 | Cantilever Arm RCA 41-450/2.5 GI | 2.5 | 450 | 41 | 1 |
| 402907 | Cantilever Arm RCA 41-600/2.5 GI | 2.5 | 600 | 41 | 1 |
| 402908 | Cantilever Arm RCA 41-750/2.5 GI | 2.5 | 750 | 41 | 1 |
| 402909 | Cantilever Arm RCA 21-300/2.0 GI | 2 | 300 | 21 | 1 |
| 402910 | Cantilever Arm RCA 21-450/2.0 GI | 2 | 450 | 21 | 1 |
| 402911 | Cantilever Arm RCA 21-300/2.5 GI | 2.5 | 300 | 21 | 1 |
| 402912 | Cantilever Arm RCA 21-450/2.5 GI | 2.5 | 450 | 21 | 1 |

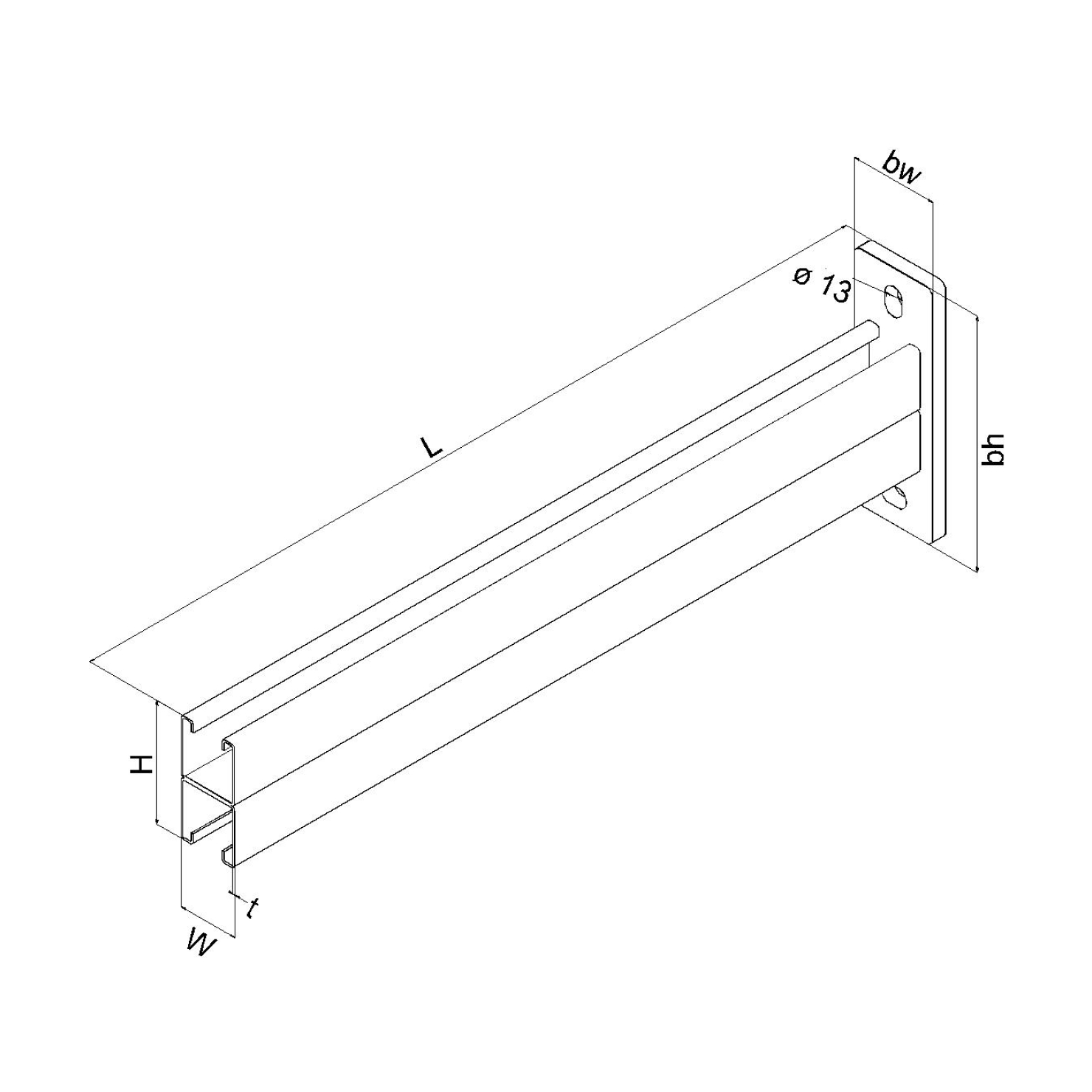

| 402913 | Cantilever Arm RCA 41D-750/2.5 GI | 2.5 | 750 | 82 | 1 |
| 402914 | Cantilever Arm RCA 41D-1000/2.5 GI | 2.5 | 1000 | 82 | 1 |
| 402915 | Cantilever Arm RCA 41-300/2.0 HDG | 2 | 300 | 41 | 1 |
| 402916 | Cantilever Arm RCA 41-450/2.0 HDG | 2 | 450 | 41 | 1 |
| 402917 | Cantilever Arm RCA 41-600/2.0 HDG | 2 | 600 | 41 | 1 |
| 402918 | Cantilever Arm RCA 41-750/2.0 HDG | 2 | 750 | 41 | 1 |
| 402919 | Cantilever Arm RCA 41-300/2.5 HDG | 2.5 | 300 | 41 | 1 |
| 402920 | Cantilever Arm RCA 41-450/2.5 HDG | 2.5 | 450 | 41 | 1 |
| 402921 | Cantilever Arm RCA 41-600/2.5 HDG | 2.5 | 600 | 41 | 1 |
| 402922 | Cantilever Arm RCA 41-750/2.5 HDG | 2.5 | 750 | 41 | 1 |
| 402923 | Cantilever Arm RCA 21-300/2.0 HDG | 2 | 300 | 21 | 1 |
| 402924 | Cantilever Arm RCA 21-450/2.0 HDG | 2 | 450 | 21 | 1 |
| 402925 | Cantilever Arm RCA 21-300/2.5 HDG | 2.5 | 300 | 21 | 1 |
| 402926 | Cantilever Arm RCA 21-450/2.5 HDG | 2.5 | 450 | 21 | 1 |
| 402927 | Cantilever Arm RCA 41D-750/2.5 HDG | 2.5 | 750 | 82 | 1 |
| 402928 | Cantilever Arm RCA 41D-1000/2.5 HDG | 2.5 | 1000 | 82 | 1 |
Wall-mounted or ceiling-mounted supports for MEP services.
- Steel Grade-E250
- Coating- Electrogalvanized, Hot Dip Galvanized
- Designed to integrate seamlessly with multiple size channels, brackets, and fittings.
- Serrated channel teeth ensure a solid grip for spring nuts, enabling reliable connection under high shear conditions.
- Corrosion protection by Electrogalvanized, Hot Dip Galvanized finishes.
