Roof Solutions
Terrabase RTBV
Non-penetrating rooftop base system for secure modular mounts
The RTBV Terrabase system provides strong, adjustable support on terrace slab without roof penetration. Engineered for MEP layouts or equipment, it balances stability and flexibility in rooftop installations.

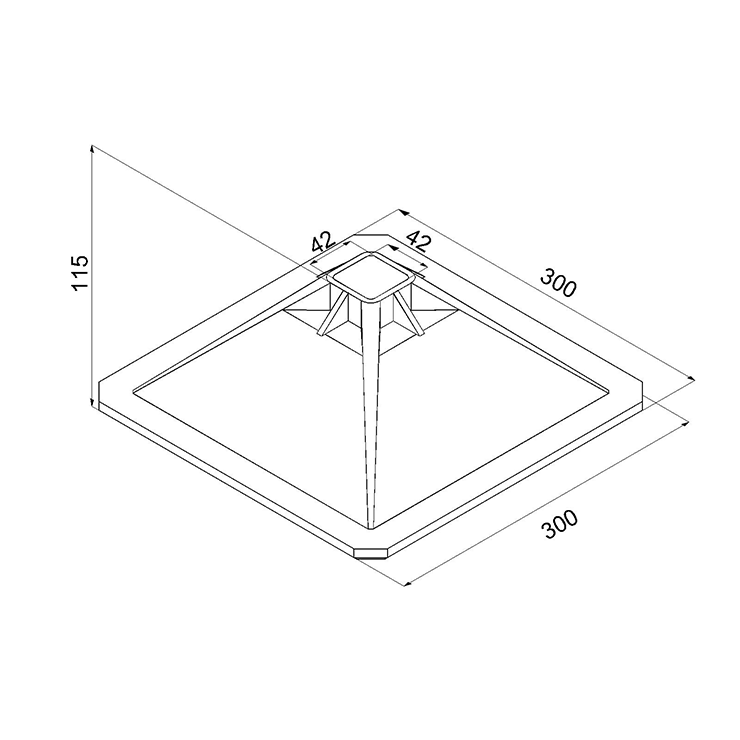

| Item no | Description | Length L(mm) | Height T(mm) | Width (mm) | Sales Unit (Pcs) |
| 403700 | Terrabase Vertical RTBV | 300 | 115 | 300 | 2 |

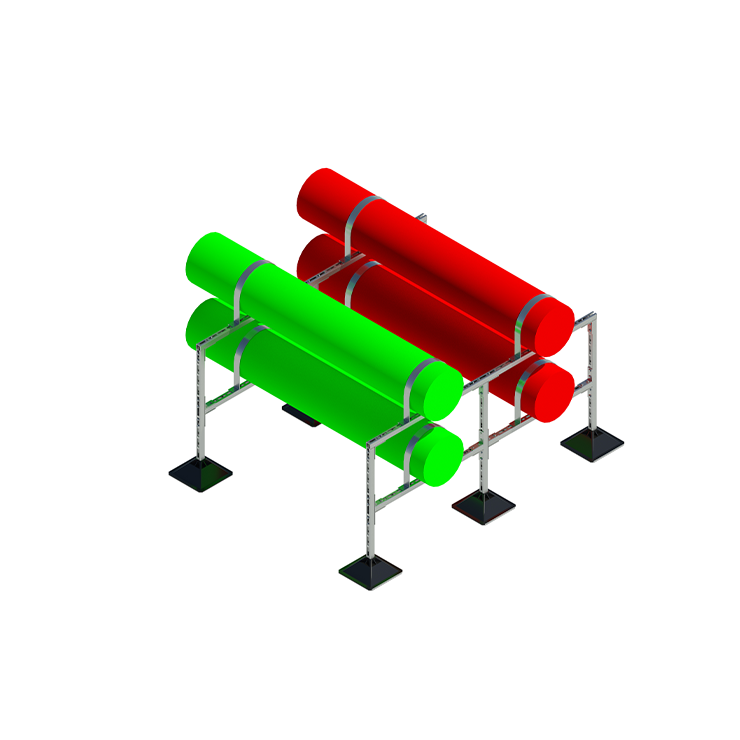

Installation of equipments and floor raised services on to the floor with non-penetrating mount system.
100% recycled High Densely Polyethylene (HDPE) includes with an anti-vibration EVA pad
- Distributes the weight of the system uniformly across the structural member.
- The EVA pad reduces the vibration transferred to the system.
- Preserves the structural integrity by eliminating structural penetrations and potential leak points.
- Exceptional weather resistance for long service life.
