Sprinkler Clamp RSC
Specifications
- Steel Grade E250
- Electroplated 5-8 µm
- HSN-73269099

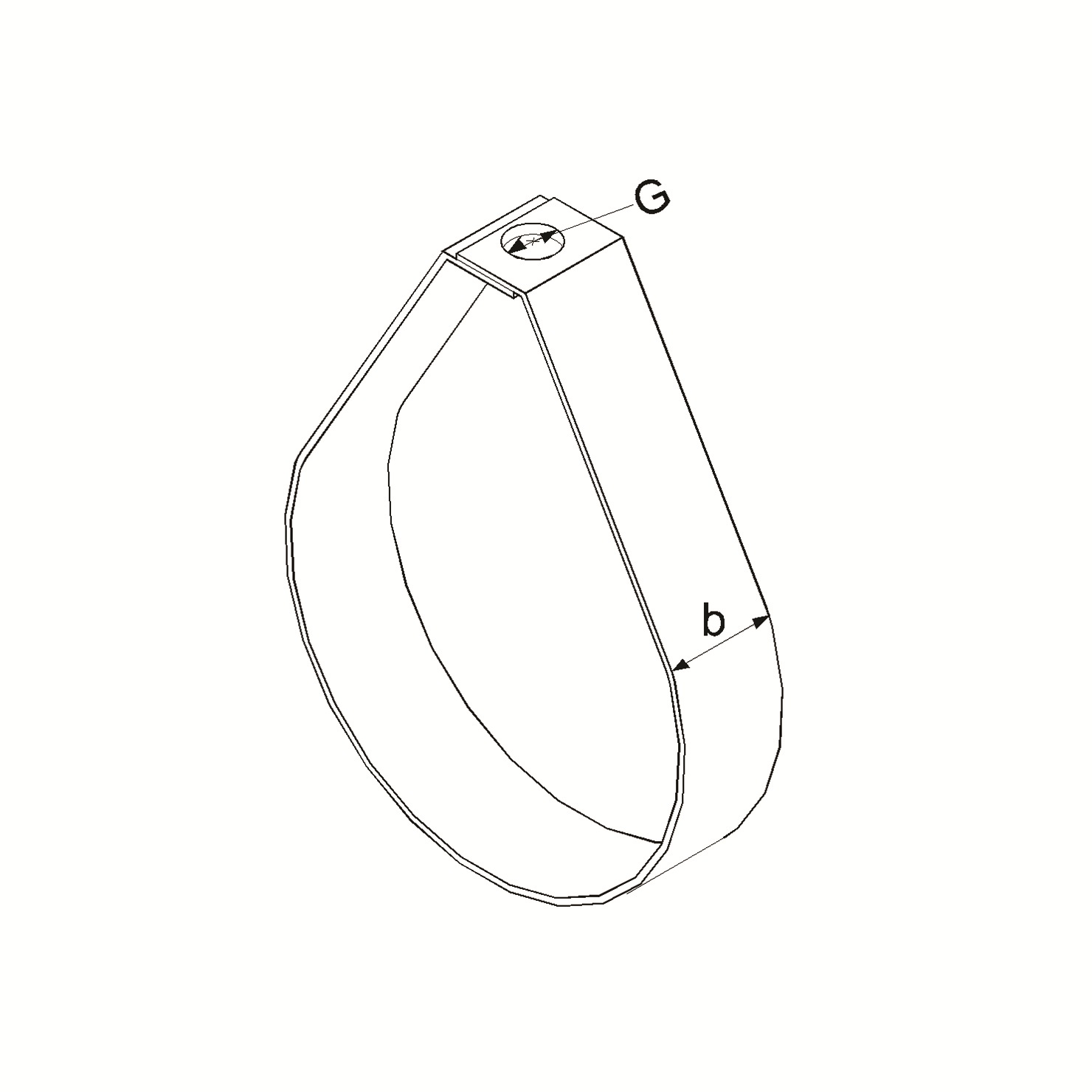

Thread G(mm) :

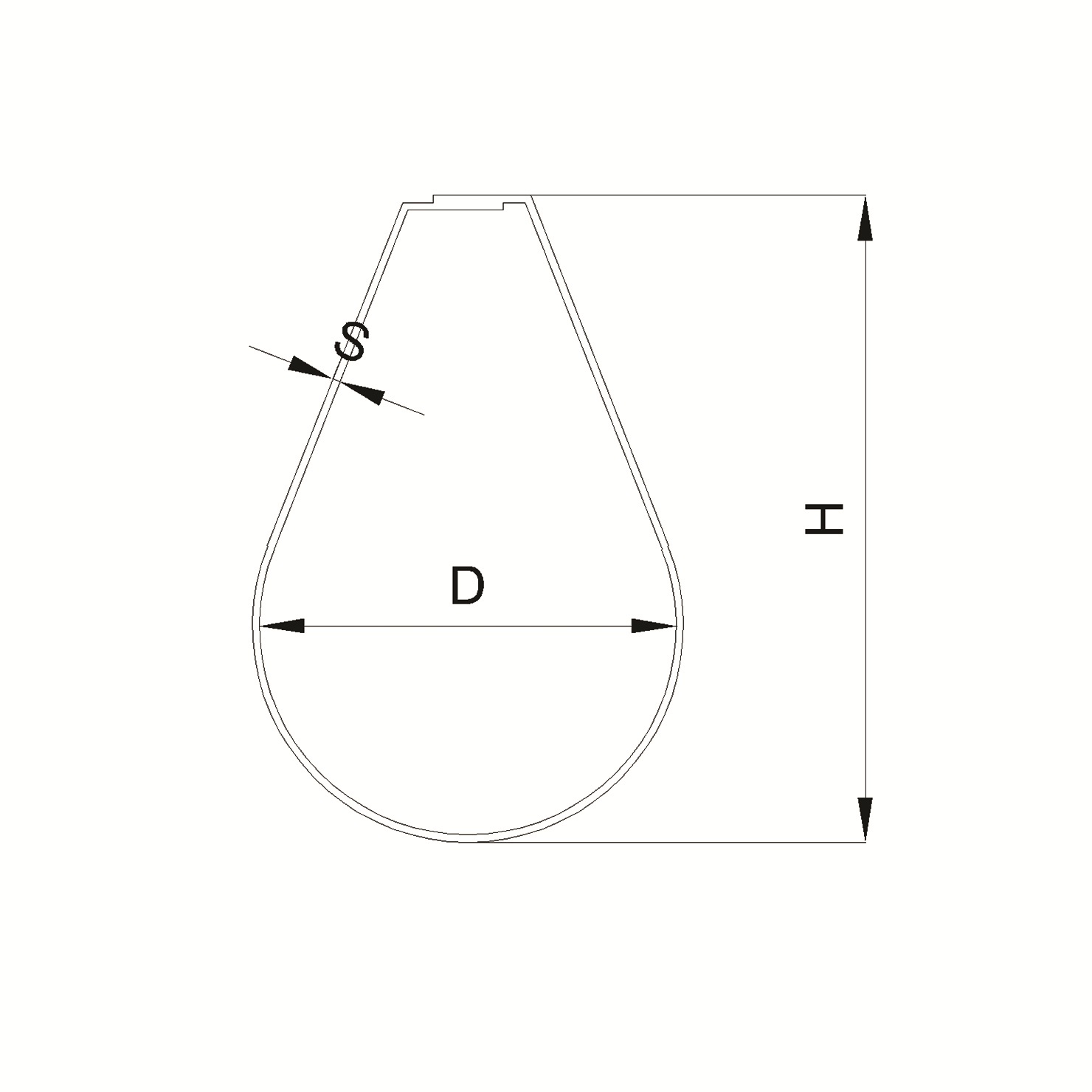

| Item no | Description | D (mm) | D (inch) | G(mm) | H (mm) | b x s (mm) | Load(kN) | Sales Unit(Pcs) |
| 401001 | Sprinkler Clamp RSC 1/2″ | 23 | ½ | M8 | 55 | 20 x 1.2 | 3.5 | 100 |
| 401002 | Sprinkler Clamp RSC ¾” | 28 | ¾ | M8 | 61 | 20 x 1.2 | 3.5 | 100 |
| 401003 | Sprinkler Clamp RSC 1″ | 35 | 1 | M8 | 70 | 20 x 1.2 | 3.5 | 100 |
| 401004 | Sprinkler Clamp RSC 1 ¼” | 42 | 1¼ | M8 | 78 | 20 x 1.2 | 3.5 | 100 |
| 401005 | Sprinkler Clamp RSC 1 ½” | 50 | 1½ | M8 | 84 | 20 x 1.2 | 3.5 | 100 |
| 401006 | Sprinkler Clamp RSC 2″ | 62 | 2 | M8 | 102 | 20 x 1.2 | 3.5 | 50 |
| 401007 | Sprinkler Clamp RSC 2 ½” | 75 | 2½ | M10 | 118 | 25 x 1.5 | 5.0 | 50 |
| 401008 | Sprinkler Clamp RSC 3” | 91 | 3 | M10 | 144 | 25 x 1.5 | 5.0 | 50 |
| 401009 | Sprinkler Clamp RSC 4″ | 115 | 4 | M10 | 176 | 25 x 1.5 | 5.0 | 25 |
| 401010 | Sprinkler Clamp RSC 5″ | 142 | 5 | M12 | 220 | 40 x 1.5 | 5.0 | 25 |
| 401011 | Sprinkler Clamp RSC 6″ | 169 | 6 | M12 | 250 | 40 x 1.5 | 5.0 | 25 |
| 401012 | Sprinkler Clamp RSC 8″ | 220 | 8 | M12 | 305 | 40 X 2.0 | 8.0 | 10 |
| 401013 | Sprinkler Clamp RSC 10″ | 274 | 10 | M12 | 360 | 40 X 2.0 | 8.0 | 10 |
