Pipe Clamps
Riser Clamp RRC
Vertical pipe clamp for riser support
RRC riser clamp transfers the weight of vertical piping to the building structure. Designed for optimal load transfer and reduced stress on hangers.

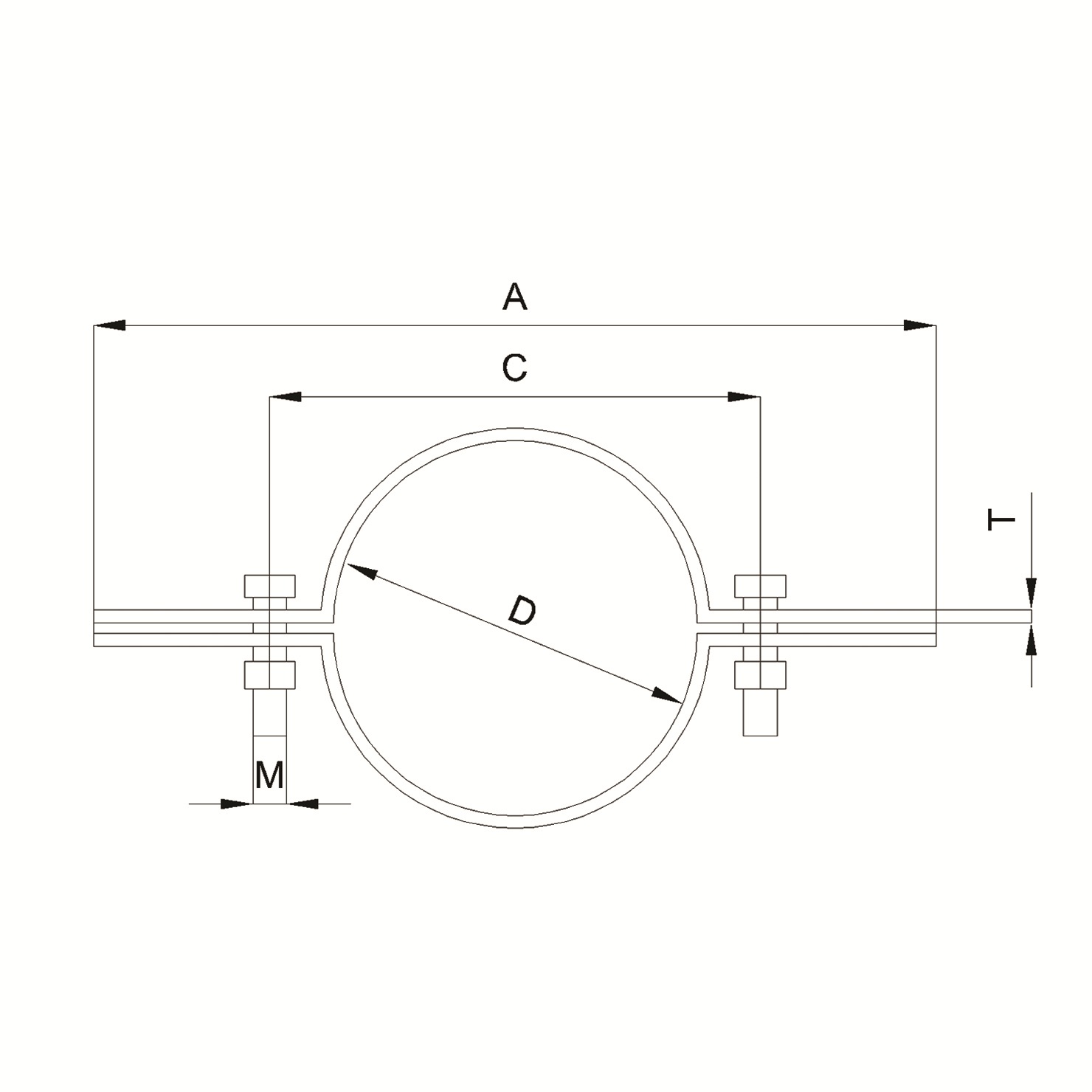

| Item no | Description | Bolt size M(mm) | D(mm) | C (mm) | A (mm) | W(mm) | T (mm) | Torque (N-m) | Load | Sales Unit(Pcs) |
| 401601 | Riser Clamp RRC 1/2″ | M10 | 21.3 | 119 | 216 | 25 | 2.5 | 25 | 2.0 | 25 |
| 401602 | Riser Clamp RRC 3/4″ | M10 | 26.7 | 127 | 227 | 25 | 2.5 | 25 | 2.0 | 25 |
| 401603 | Riser Clamp RRC 1″ | M10 | 33.4 | 131 | 227 | 25 | 2.5 | 25 | 2.0 | 25 |
| 401604 | Riser Clamp RRC 1 1/4″ | M10 | 42.1 | 142 | 240 | 25 | 2.5 | 25 | 2.0 | 25 |
| 401605 | Riser Clamp RRC 1 1/2″ | M10 | 48.2 | 150 | 251 | 25 | 2.5 | 25 | 2.0 | 25 |
| 401606 | Riser Clamp RRC 2″ | M10 | 60.3 | 161 | 260 | 30 | 4 | 25 | 5.0 | 25 |
| 401607 | Riser Clamp RRC 2 1/2″ | M10 | 73 | 177 | 280 | 30 | 4 | 25 | 5.0 | 10 |
| 401608 | Riser Clamp RRC 3″ | M10 | 88.9 | 194 | 298 | 30 | 4 | 25 | 5.0 | 10 |
| 401609 | Riser Clamp RRC 3 1/2″ | M10 | 101.6 | 211 | 320 | 30 | 4 | 25 | 5.0 | 10 |
| 401610 | Riser Clamp RRC 4″ | M12 | 114.3 | 218 | 321 | 30 | 6 | 65 | 7.0 | 10 |
| 401611 | Riser Clamp RRC 5″ | M12 | 141.3 | 236 | 330 | 50 | 6 | 65 | 7.0 | 10 |
| 401612 | Riser Clamp RRC 6″ | M12 | 168.3 | 269 | 368 | 50 | 6 | 65 | 7.0 | 10 |
| 401613 | Riser Clamp RRC 8″ | M16 | 219.1 | 313 | 406 | 50 | 10 | 90 | 10.0 | 5 |
| 401614 | Riser Clamp RRC 10″ | M16 | 273 | 369 | 464 | 50 | 10 | 90 | 10.0 | 5 |
| 401615 | Riser Clamp RRC 12″ | M16 | 323.8 | 424 | 524 | 50 | 12 | 90 | 12.0 | 1 |
| 401616 | Riser Clamp RRC 14″ | M16 | 355.6 | 469 | 581 | 50 | 12 | 90 | 12.0 | 1 |
| 401617 | Riser Clamp RRC 16″ | M16 | 406.4 | 515 | 622 | 63 | 16 | 90 | 15.0 | 1 |
| 401618 | Riser Clamp RRC 18″ | M20 | 457.2 | 572 | 686 | 63 | 16 | 205 | 15.0 | 1 |
| 401619 | Riser Clamp RRC 20″ | M20 | 508 | 629 | 750 | 63 | 16 | 205 | 15.0 | 1 |
| 401620 | Riser Clamp RRC 24″ | M20 | 609.6 | 730 | 850 | 63 | 16 | 205 | 15.0 | 1 |

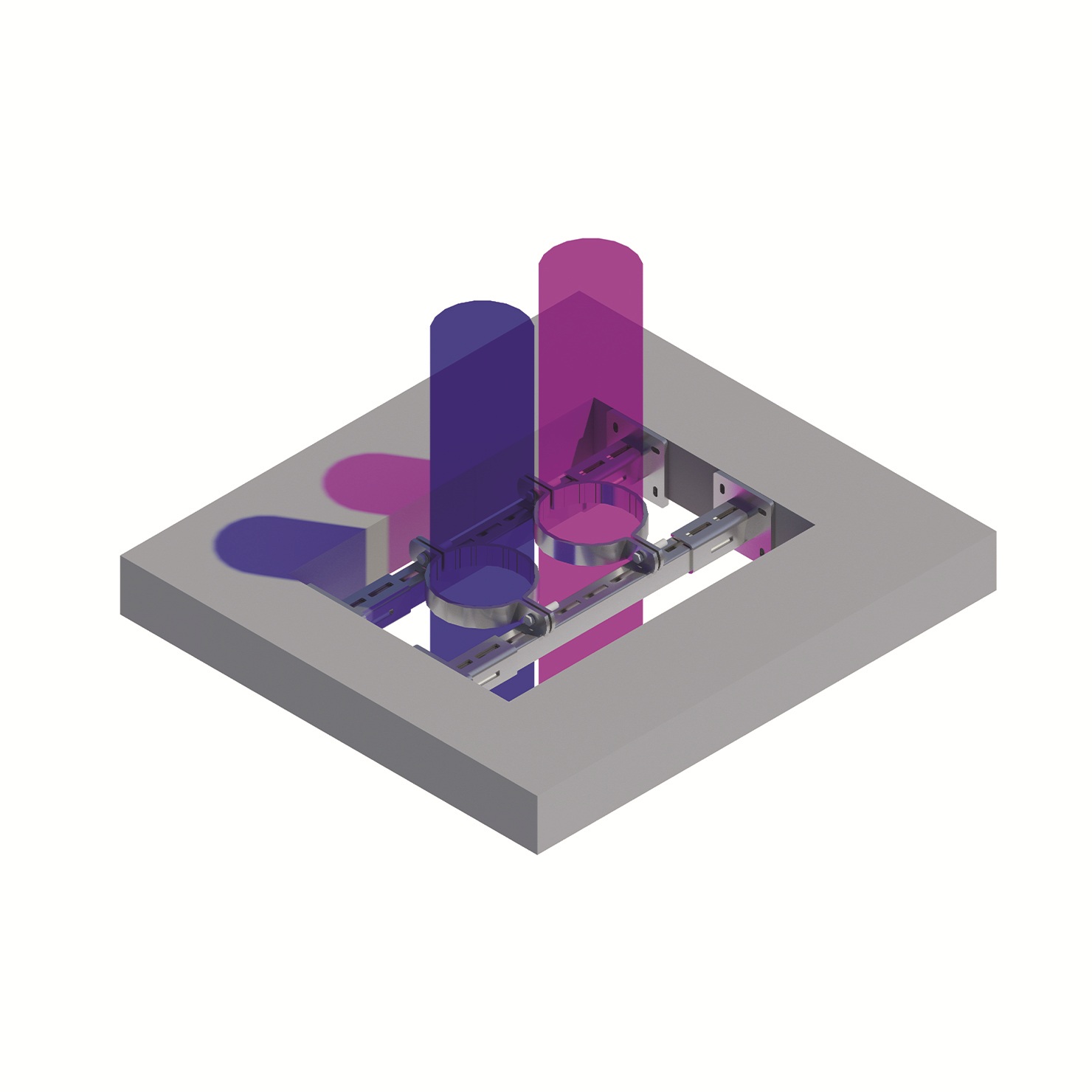

- Designed for vertical suspension of pipelines across multiple floors in high rise buildings.
- Provides a secure anchor point to transfer the weight of riser pipes to building structures.
- Steel Grade-E250
- Coating – Electrogalvanized, Hot Dip Galvanized
- Ensures reliable load transfer for vertical pipes up to large diameters.
- Available for pipe diameters from ½” to 24″ to suit multiple applications.
- Available in Electrogalvanized and Hot Dip Galvanized finishes for extended service life.
