Pipe Clamps
Medium Duty Split Clamp RSPC
Versatile split clamp for general applications
RSPC split clamp delivers balanced strength and flexibility. Ideal for moderate-load pipes.

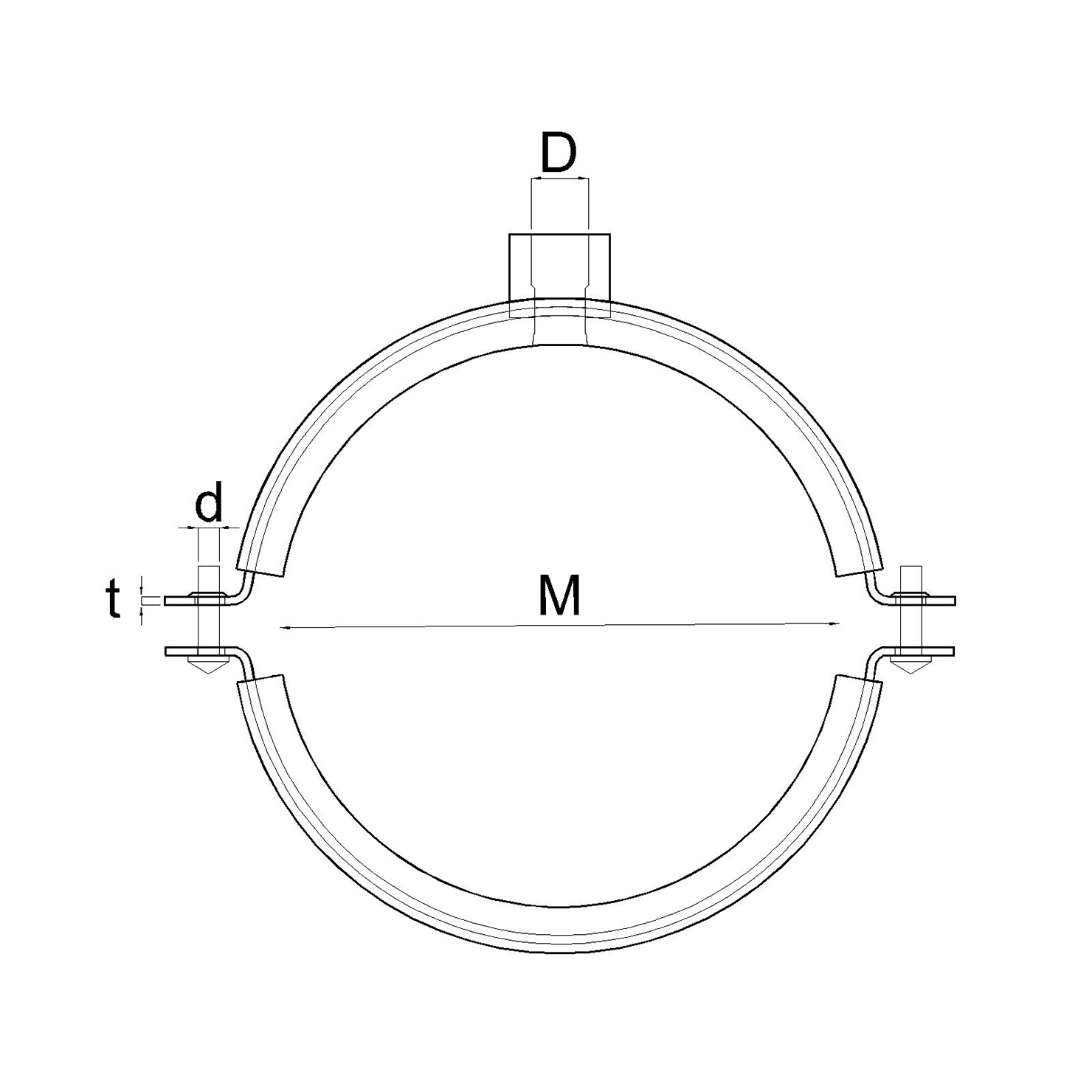

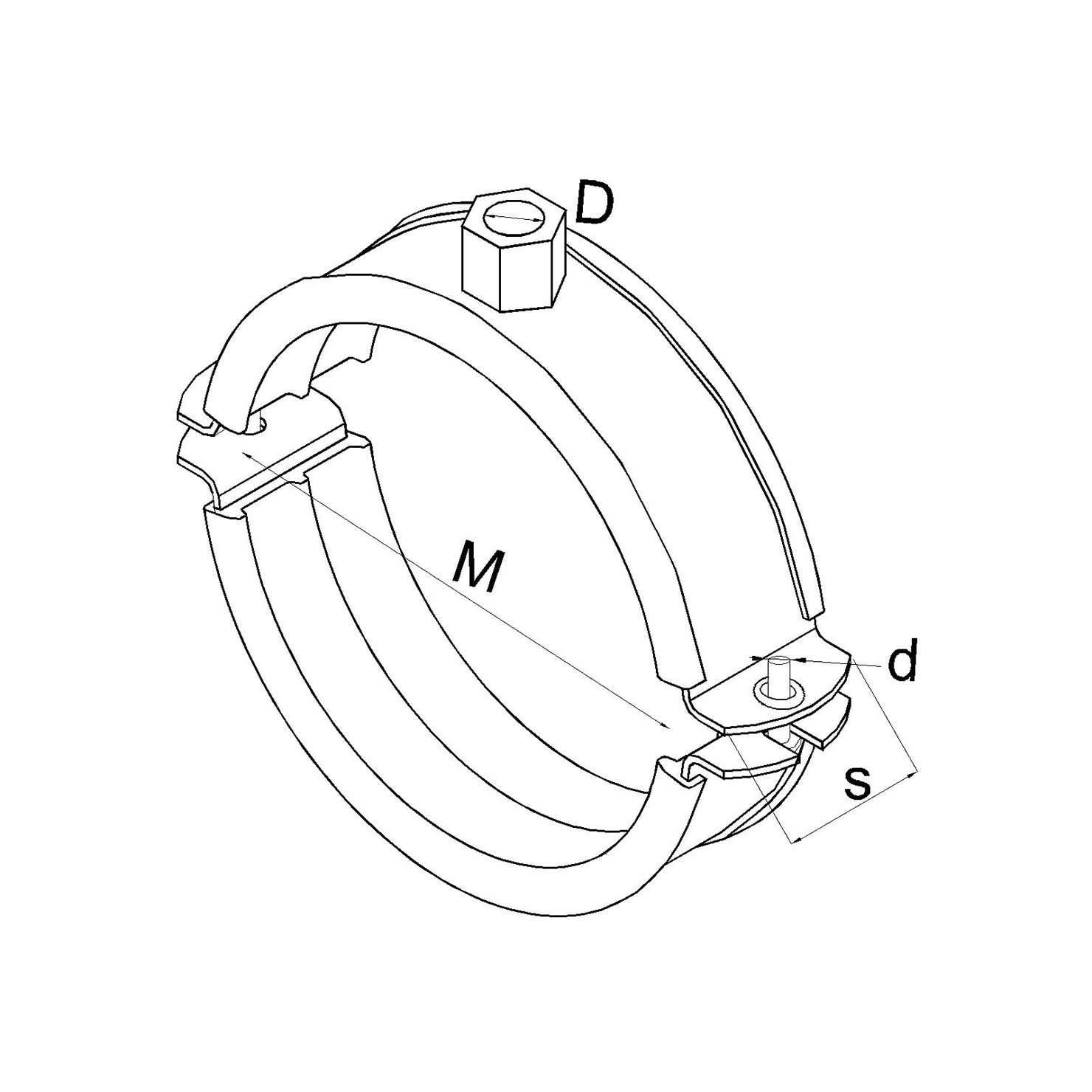

| Item no | Description | Thread Nut (mm) | t x s(mm) | Screw (mm) | Load(kN) | Sales Unit(Pcs) |
| 401101 | Split clamp RSPC 1520 | M8+M10 | 1.2 x20 | M6 x 20 | 2 | 100 |
| 401102 | Split clamp RSPC 20-25 | M8+M10 | 1.2 x20 | M6 x 20 | 2 | 100 |
| 401103 | Split clamp RSPC 2630 | M8+M10 | 1.2 x20 | M6 x 20 | 2 | 100 |
| 401104 | Split clamp RSPC 3236 | M8+M10 | 1.2 x20 | M6 x 20 | 2 | 100 |
| 401105 | Split clamp RSPC 4045 | M8+M10 | 1.2 x20 | M6 x 20 | 2 | 100 |
| 401106 | Split clamp RSPC 4751 | M8+M10 | 1.2 x20 | M6 x 20 | 2 | 100 |
| 401107 | Split clamp RSPC 5358 | M8+M10 | 1.2 x20 | M6 x 20 | 2 | 50 |
| 401108 | Split clamp RSPC 6064 | M8+M10 | 1.2 x20 | M6 x 20 | 2 | 50 |
| 401109 | Split clamp RSPC 68-72 | M8+M10 | 1.6×20 | M6 x 20 | 3 | 50 |
| 401110 | Split clamp RSPC 7480 | M8+M10 | 1.6×20 | M6 x 20 | 3 | 50 |
| 401111 | Split clamp RSPC 8186 | M8+M10 | 1.6×20 | M6 x 20 | 3 | 50 |
| 401112 | Split clamp RSPC 8792 | M8+M10 | 1.6×20 | M6 x 20 | 3 | 50 |
| 401113 | Split clamp RSPC 99105 | M8+M10 | 2.0×20 | M6 x 20 | 5 | 50 |
| 401114 | Split clamp RSPC 107112 | M8+M10 | 2.0×20 | M6 x 20 | 5 | 50 |
| 401115 | Split clamp RSPC 113118 | M8+M10 | 2.0×20 | M6 x 20 | 5 | 50 |
| 401116 | Split clamp RSPC 125130 | M8+M10 | 2.0×20 | M6 x 20 | 5 | 50 |
| 401117 | Split clamp RSPC 131-137 | M8+M10 | 2.0×20 | M6 x 20 | 5 | 50 |
| 401118 | Split clamp RSPC 138142 | M8+M10 | 2.0×20 | M6 x 20 | 5 | 50 |
| 401120 | Split clamp RSPC 148153 | M8+M10 | 2.0×20 | M6 x 20 | 5 | 50 |
| 401120 | Split clamp RSPC 159166 | M8+M10 | 2.0×20 | M6 x 20 | 5 | 50 |
| 401121 | Split clamp RSPC 168172 | M8+M10 | 2.0×20 | M6 x 20 | 5 | 25 |
| 401122 | Split clamp RSPC 204-209 | M8+M10 | 2.0×25 | M6 x 20 | 6 | 25 |
| 401123 | Split clamp RSPC 215220 | M8+M10 | 2.0×25 | M6 x 20 | 6 | 25 |
| 401124 | Split clamp RSPC 249-254 | M8+M10 | 2.0×25 | M6 x 20 | 6 | 25 |
| 401125 | Split clamp RSPC 268274 | M8+M10 | 2.0×25 | M6 x 20 | 6 | 25 |
| 401126 | Split clamp RSPC 299-304 | M8+M10 | 2.0×25 | M6 x 20 | 6 | 25 |
| 401127 | Split clamp RSPC 320328 | M8+M10 | 2.0×25 | M6 x 20 | 6 | 25 |

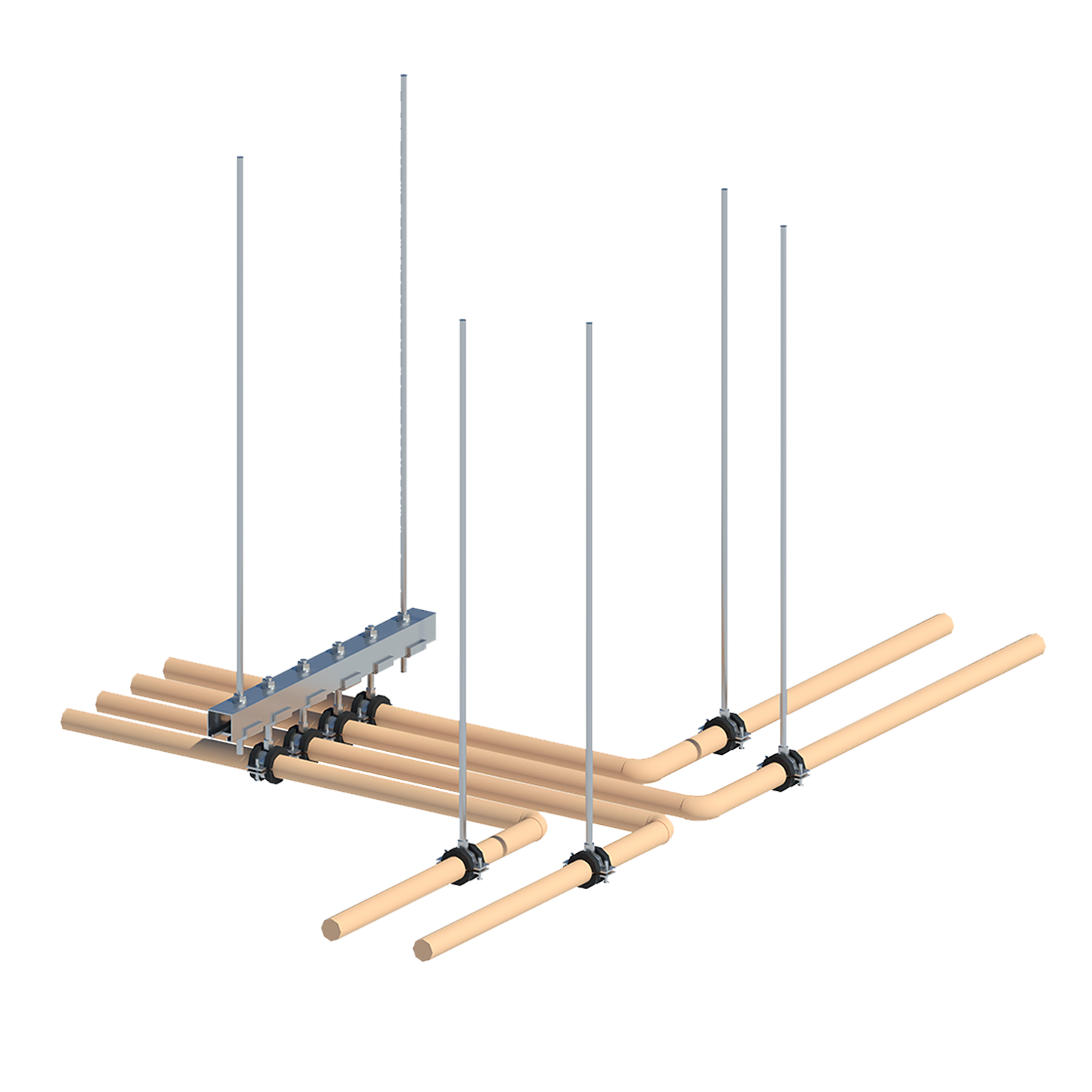

Provides a secure and insulated mounting solution for a wide range of pipes.
- Steel Grade-E250
- Coating – Electrogalvanized, Hot Dip Galvanized
- Two-piece split clamp with EPDM rubber lining provides vibration dampening, acoustic insulation and bimetallic corrosion protection.
- M8/M10 dual nut boss connection for threaded rods.
- Zinc-plated steel for strength and corrosion protection.
