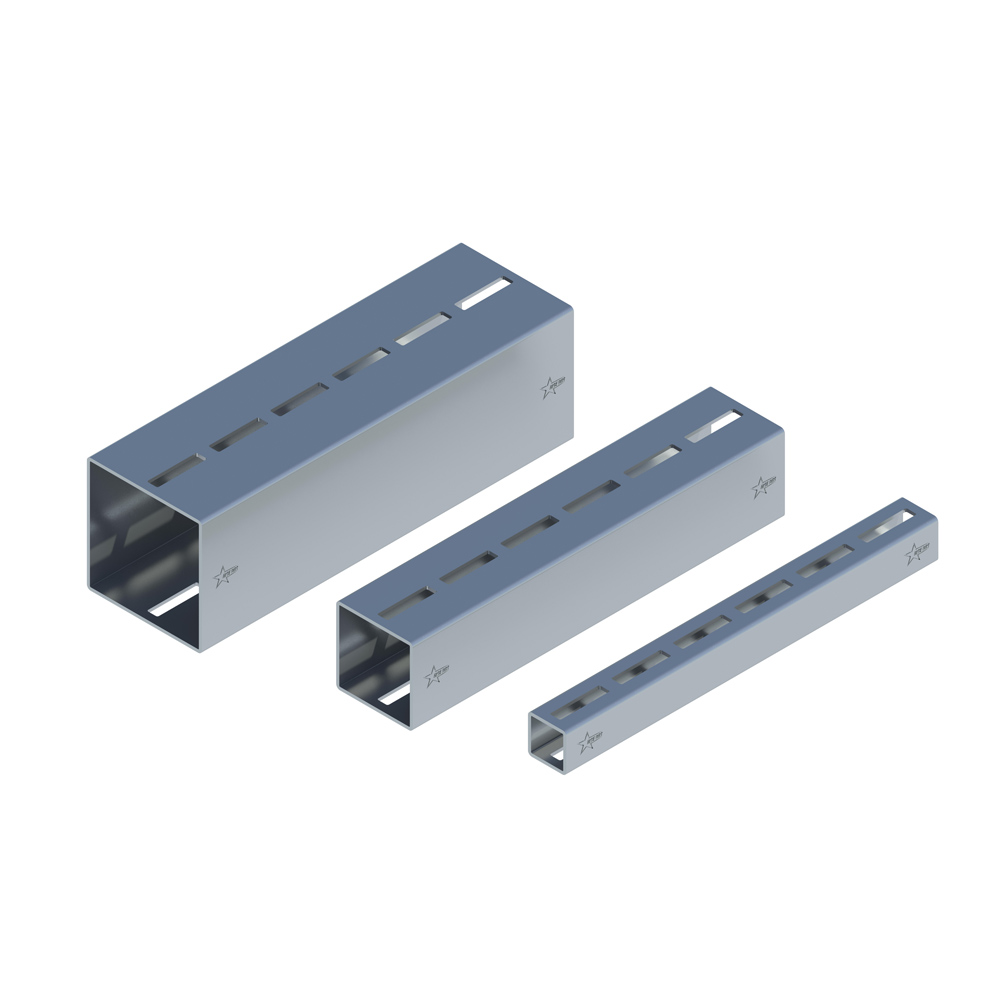

Heavy Duty Profile RHX
High load box profile for structural frameworks
RHX heavy duty profile is built for large structural support systems requiring maximum strength.

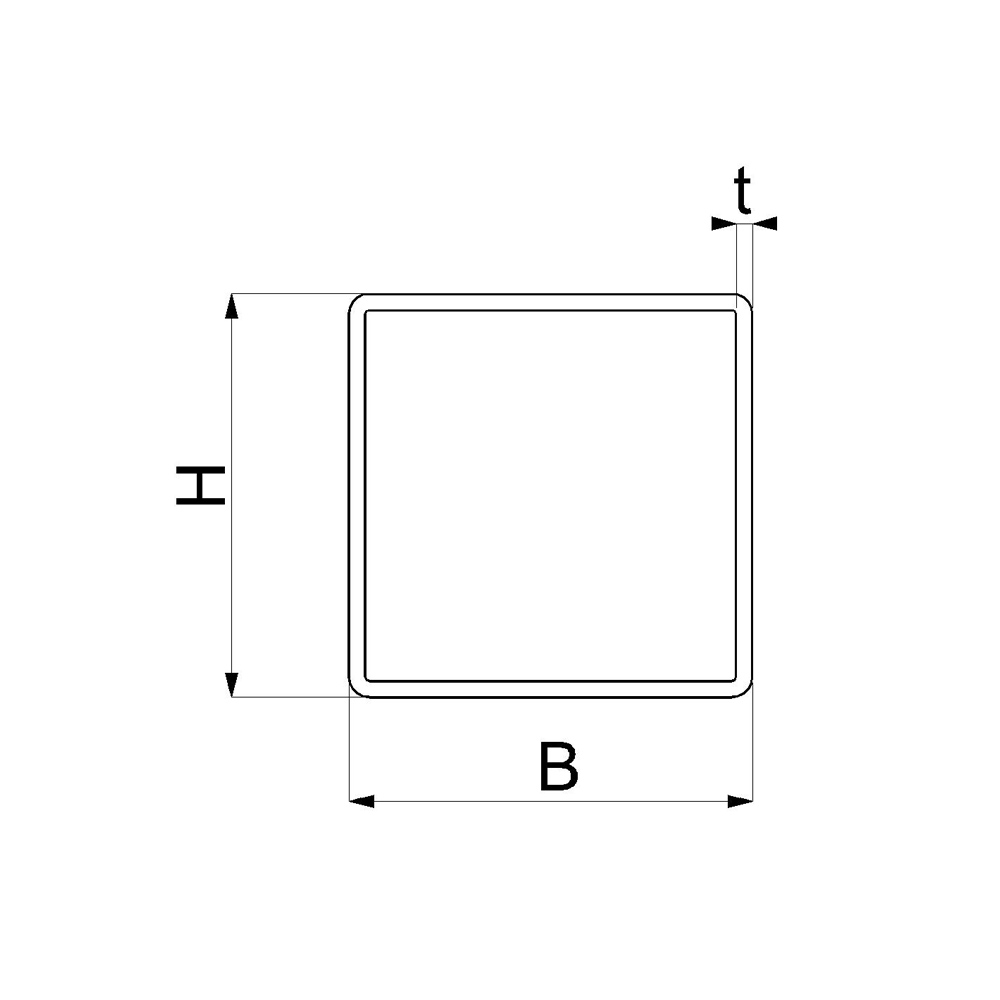

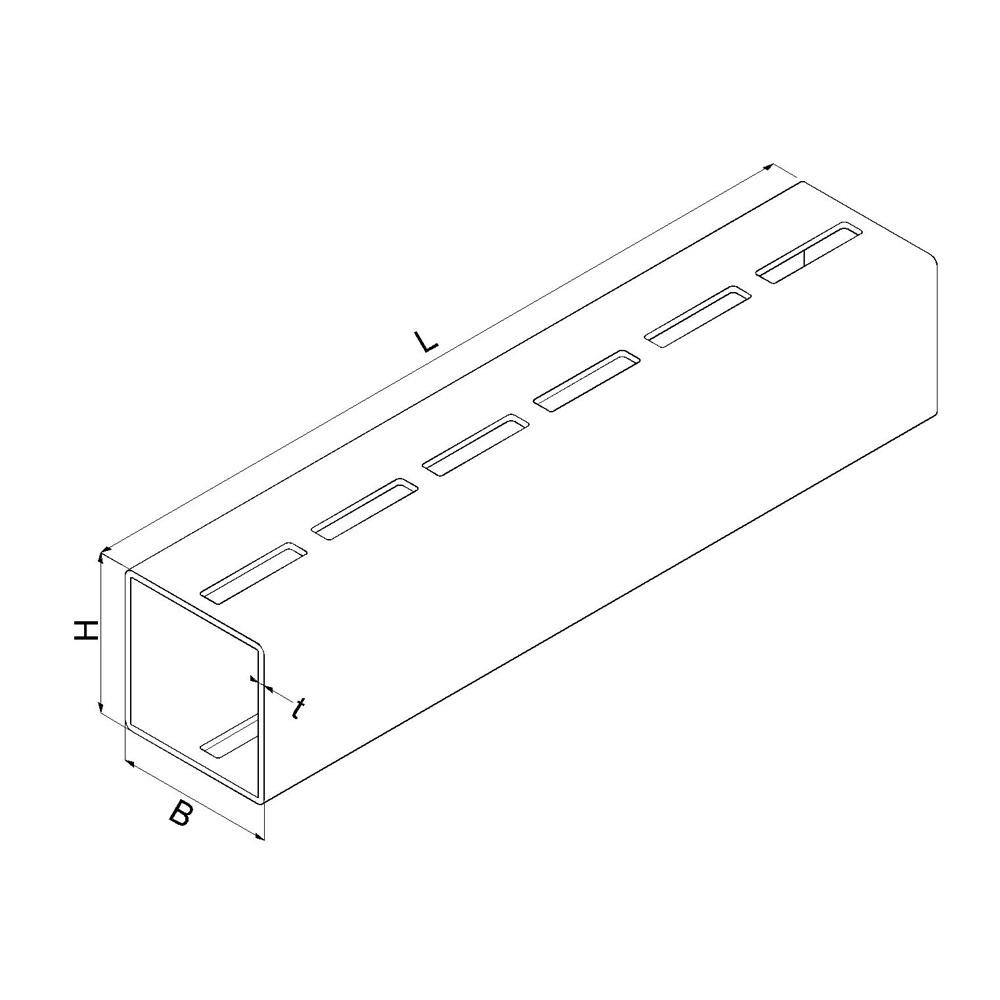

Dimensions BxH(mm) :
| Item no | Description | Dimensions BxH(mm) | Length(mm) | Thickness t(mm) | Sales Unit(Pcs) |
| 402501 | Heavy duty box RHX 40 HDG | 40×40 | 6000 | 3.0 | 1 |
| 402502 | Heavy duty box RHX 60 HDG | 60×60 | 6000 | 4.0 | 1 |
| 402503 | Heavy duty box RHX 80 HDG | 80×80 | 6000 | 4.0 | 1 |
| 402504 | Heavy duty box RHX 100 HDG | 100×100 | 6000 | 4.0 | 1 |
| 402505 | Heavy duty box RHX 150 HDG | 150×150 | 6000 | 4.0 | 1 |
| 402506 | Heavy duty box RHX 200 HDG | 200×200 | 6000 | 5.0 | 1 |
* Extended thickness range is available on request.
Designed as a structural channel profile for building modular framing and support systems.
- Steel Grade-E 250/310
- Coating – Hot Dip Galvanized
- High-strength profile manufactured from E310 or above grade steel for superior load performance.
- Heavy-duty box profile – ensures robust structural stability.
- Corrosion resistant – hot-dip galvanized (HDG) finish provides long-term protection in harsh environments.
- Precision-engineered slot size dimensions ensure compatibility with fittings.
- Designed for seamless connection with clamps, brackets, and channel accessories.
