Steel and Metal Deck Fixings
Channel Beam Clamp RBC
Adjustable clamp for channel-to-beam attachment

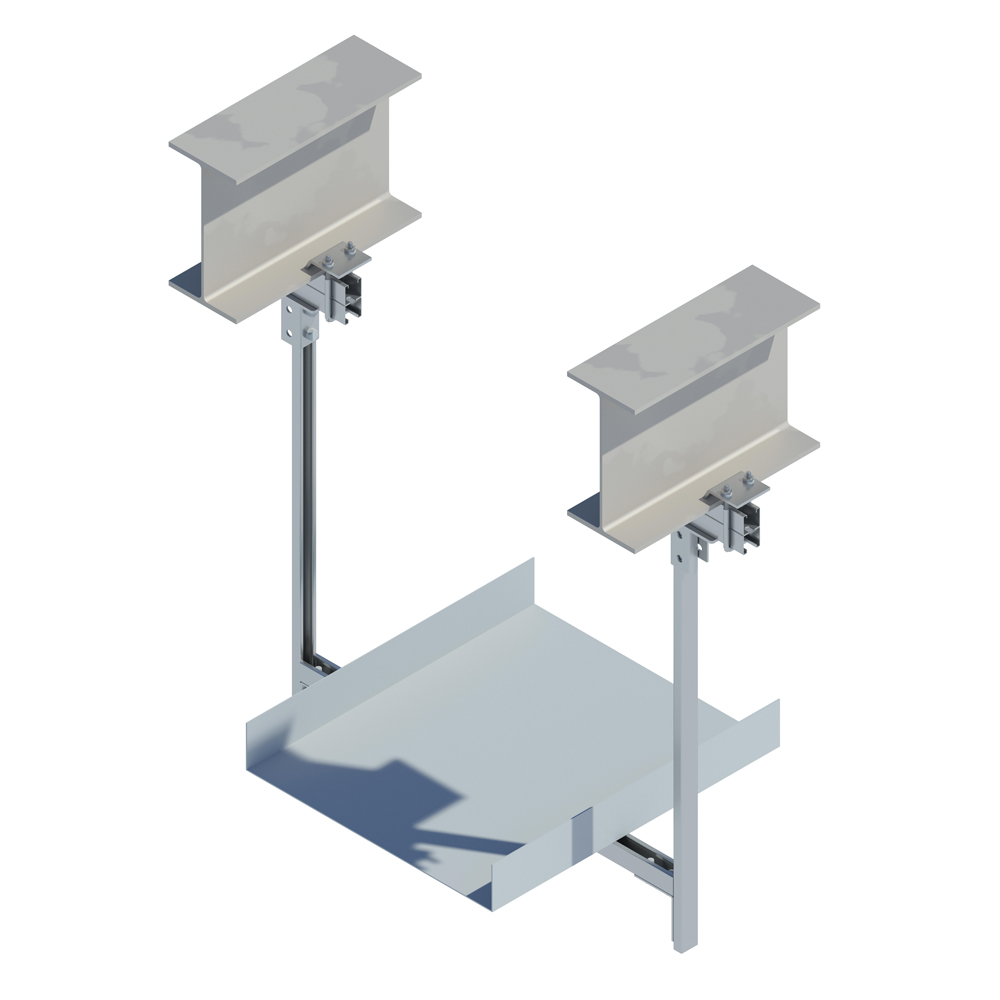

RBC channel clamp combines high tensile strength with quick installation. Perfect for connecting channels or supports to existing steel beams.
Channel Profile(mm) :
Coating :

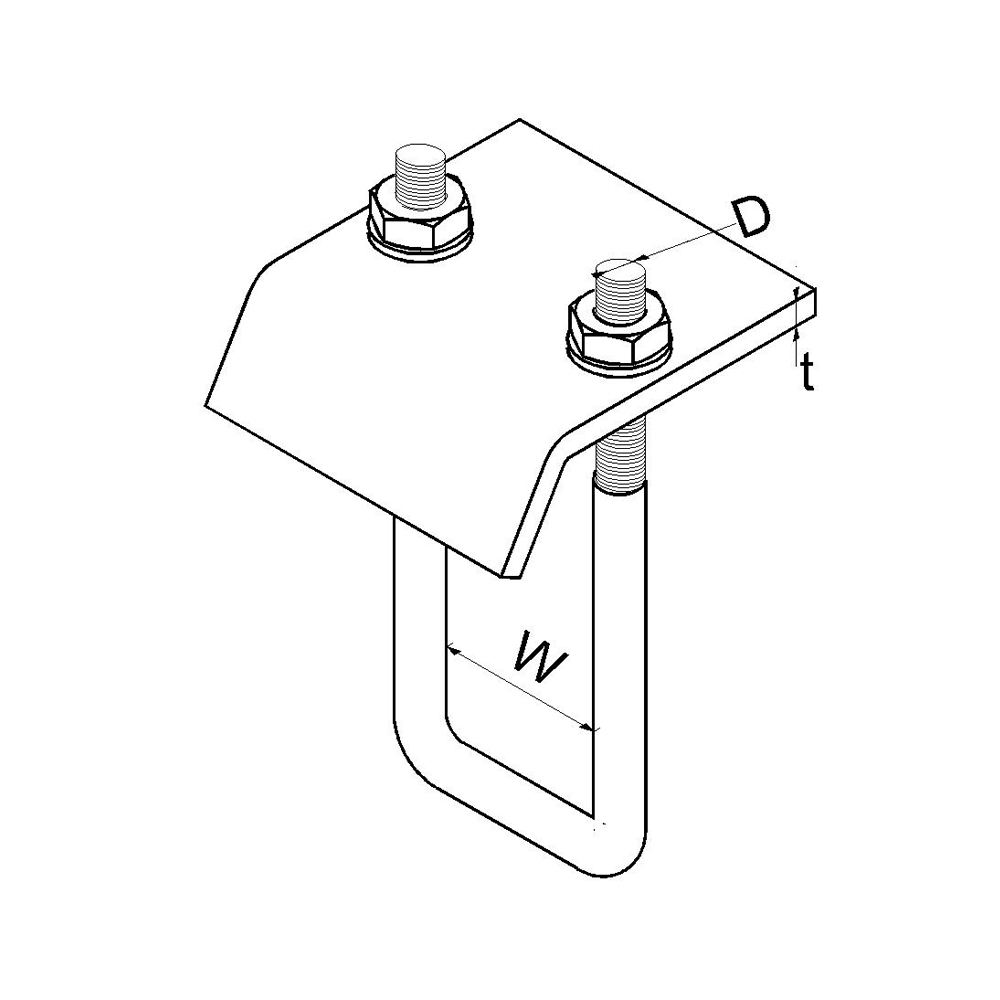

| Item no | Description | Channel Profile(mm) | B(mm) | (H)mm | (c)mm | (M)mm | (A)mm | (T)mm | Torque(Nm) | Load(kN) | Sales Unit(Pcs) | Coating |
| 401704 | BEAM CLAMP RBC 21-41 GI | 21/41, 41/41 | 80 | 97 | 48 | 8 | 52 | 6 | 15 | 10 | 25 | Galvanised |
| 401705 | BEAM CLAMP RBC 82 GI | 41D | 80 | 137 | 80 | 10 | 54 | 6 | 20 | 10 | 25 | Galvanised |
| 401706 | BEAM CLAMP RBC 21-41 HDG | 21/41, 41/42 | 80 | 97 | 48 | 8 | 52 | 6 | 15 | 10 | 25 | Hot Dip Galvanised |
| 401707 | BEAM CLAMP RBC 82 HDG | 41D | 80 | 137 | 80 | 10 | 54 | 6 | 20 | 10 | 25 | Hot Dip Galvanised |
Designed for connecting channels to steel beams without drilling or welding.
- Steel Grade-E250, Bolt 4.8
- Coating – Electrogalvanized, Hot Dip Galvanized
- Quickly clamps onto steel beams using pre punched design and U-bolt fastening.
- Fits multiple channel sizes and profiles for flexible installation.
