Steel and Metal Deck Fixings

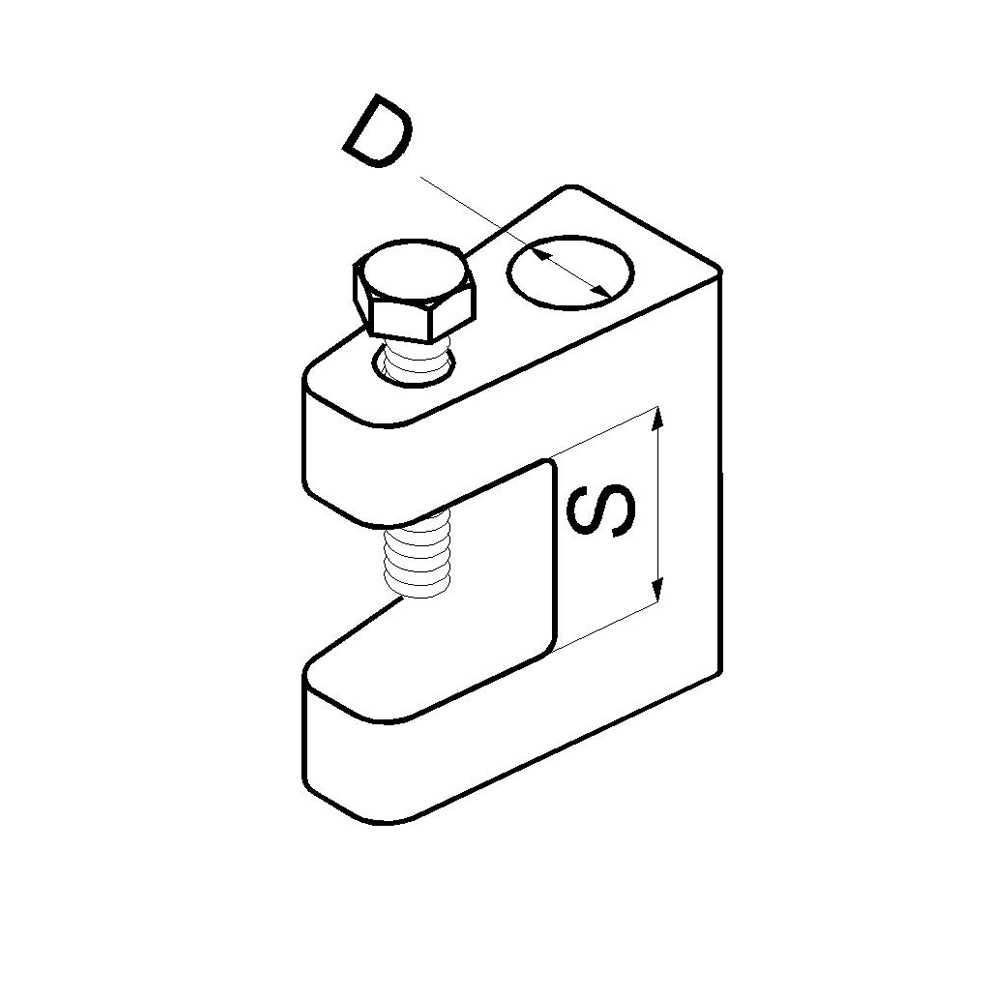

Beam Clamp Hanger RBC
Specifications
- Material grade-Ductile cast Iron
- HSN-7325 99 10
Thread d(mm) :
| Item no | Description | Range R(mm) | Thread d(mm) | Torque(Nm) | Load(kN) | Sales Unit(Pcs) |
| 401701 | CLAMP HANGER RBC M 8 | 0-23 | M8 | 20 | 3.5 | 50 |
| 401702 | CLAMP HANGER RBC M 10 | 0-23 | M10 | 30 | 4.0 | 50 |
| 401703 | CLAMP HANGER RBC M 12 | 0-23 | M12 | 30 | 5.0 | 50 |
